PASO P8056 6-zone attenuator panel

6-zone attenuator panel

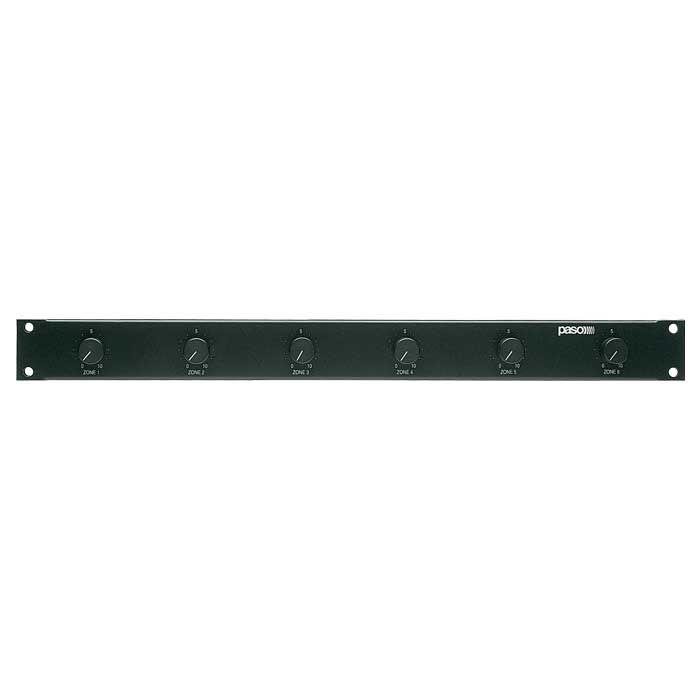

The P8056 is a multiple volume regulator, for 50-70-100 V constant voltage lines, suitable for rack mounting (1 modular unit). It consists of 6 11-step inductive attenuators (10+Off), each of which can withstand a maximum load of 50 W. The six output lines (zones) can be divided into two groups of three so that they can be driven with one or two separate amplifiers. Each attenuator has a bypass relay for sending announcements and messages without attenuation. Each relay requires a 24 VDC power supply, with 10 mA of absorption. The rear terminal blocks are removable with a slide attachment.

FUNCTIONAL CHARACTERISTICS: 6 50 W attenuators 6 output lines separable into two groups of 3 2 inputs for constant voltage lines (one for 1-2-3 outputs and the other for 4-5-6 outputs) By-pass relay for each attenuator Standard 19” rack mount (height 1 U)
