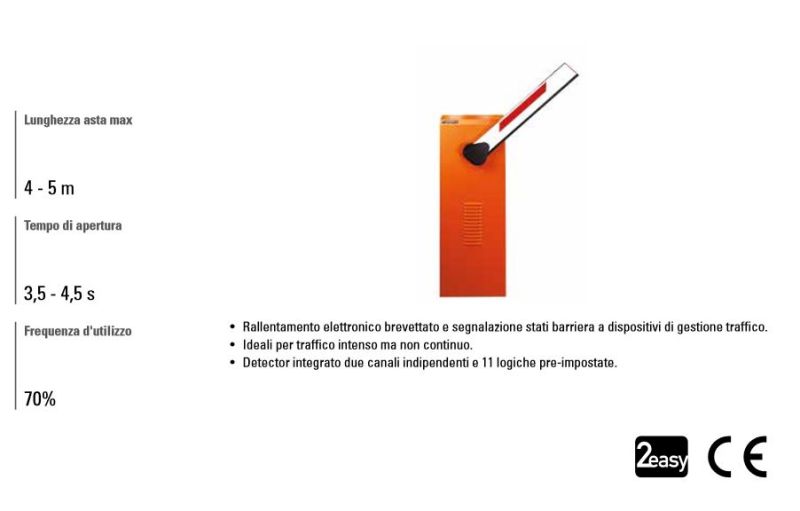

FAAC 1046488 230V 620 STANDARD DX Automatic Barrier

230V 620 STANDARD DX Automatic Barrier

230V automatic barrier - Frequency of use: 70%

Patented electronic slowdown and barrier status signaling to traffic management devices. - Ideal for heavy but not continuous traffic. - Integrated detector, two independent channels and 11 pre-set logic.

Package: barrier body, hydraulic motion transmission system complete with balance spring, built-in 624BLD electronic board, installation accessories, a triangular release key.

ROD LIST: 620 standard rectangular, length (mm) 3,065 ÷ 3,815 620 standard rectangular with lights, length (mm) 3,065 ÷ 3,665 620 round S, length (mm) 3,310 ÷ 3,800

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Motor rotation speed: 1400 rpm Max power: 220 W Material type: Steel Type of treatment: anti-corrosion primer 100 microns + Polyester coating RAL 2004 Encoder: No — hydraulic anti-crush safety Type of slowdown: Electronic — Adjustable with cams Operating environment temperature: -20°C ÷ +55°C Thermoprotection: 120°C Cooling: — Degree of protection: IP44 Weight: 73 Kg Oil type: FAAC HP OIL Dimensions (LxDxH): 350 x 170 x 1080 mm Frequency of use: 70% Electronic equipment: 624BLD built-in
