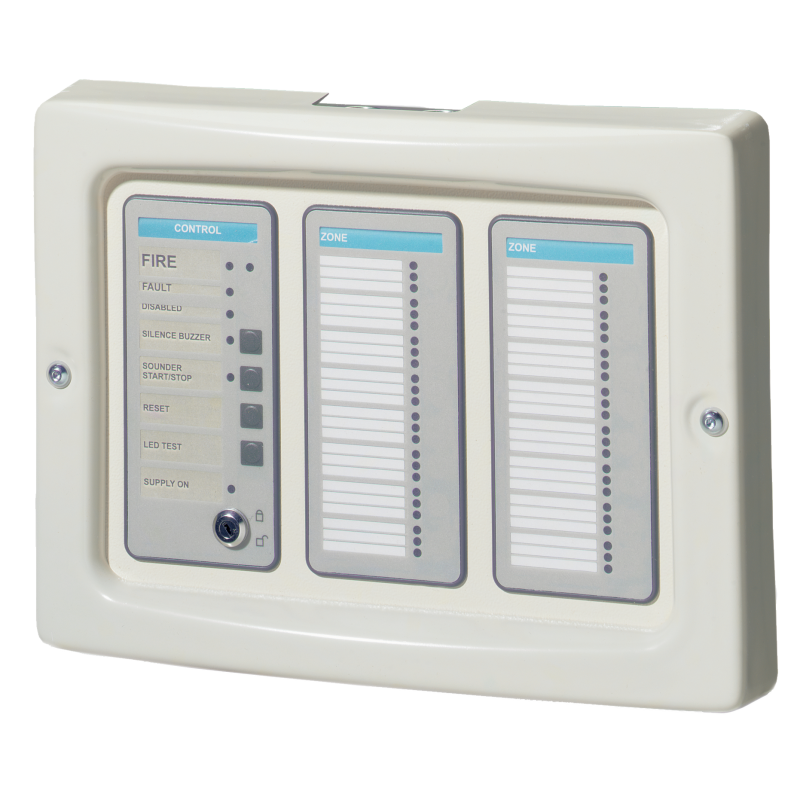

ARITECH FIRE FR748LED 700 series LED repeater panel - Equipped with 48 zones and general indications

700 series LED repeater panel. Equipped with 48 zones and general indications, it provides the possibility of carrying out basic checks for the 1200/2000 series fire detection unit located remotely. It uses the LON700 communication bus

General
The FR748LED is a LON700-based LED repeater. This 48-zone repeater provides the user with basic controls for the Fire Control Unit and general indications. FR748LED returns the alarm signal and the fault signal for each reported zone; or the zones can be freely programmed. This elegant and compact unit provides a cost-effective solution for all those applications that require repeaters. A maximum of 32 LON700 nodes can be connected to the Fire Control Unit. The bus consists of two conductors

Simple installation
The FR716LED repeater represents an easy, cost-effective solution for repeating the state of a fire control unit. The repeaters in question are connected to the Fire Control Unit using a simple two-conductor bus; the maximum length of the bus is 1500 meters. Up to 32 repeaters can be connected to the Fire Control Unit. The FR716LEDs must be powered

Easy to use
FR748LED is compact, pleasant, simple to use; these characteristics make it suitable to be installed discreetly in reception areas, offices, elevator lobbies and similar places.
The repeater allows alarms to be displayed through a series of LEDs. FR748LED is equipped with 48 alarm LEDs as well as other general signal LEDs such as General Fire, General Failure, General Disability, Ringing Status and Power Presence. An alarm in the field generates a general signal and a specific signal for the area. The buzzer reactivates with each new alarm. The panel keys allow the control of the local buzzer, the muting/activation of ringtones, the reset
