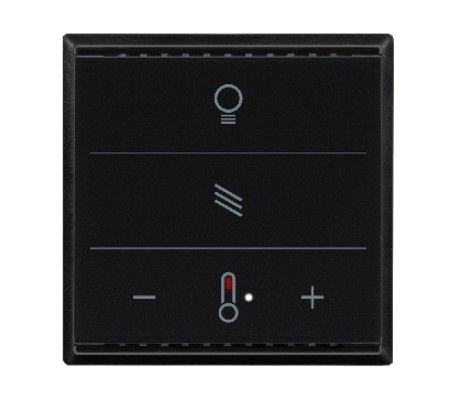

ELSNER 70893 KNX MultiTouch T Light/Sunblind CH-black 9005 case

The Cala KNX MultiTouch T CH button, code 70893, is an innovative device designed for integration into the KNX building bus system. This button has touch-sensitive surfaces that allow you to recall various functions within the KNX system.

Key Features

• Lighting operation with 3 areas (switching and brightness adjustment)
• Temperature control operation with 3 areas (heating, cooling, heating/cooling switching)
• Total of 9 areas, each of which can be assigned to specific bus functions or to individual bus functions (switches, selection switches, dimmers, blinds, blinds, blinds, windows, 8 or 16 bit encoders, call/scene)

Configuring the LEDs

• LED setting: all off, all on, active LEDs always on, all LEDs on for a specific time after pressing the button, active LEDs on for a specific time after pressing the button
• Setting the brightness of the LEDs for day and night
• Setting the blinking of the LEDs to the value of the block object = 1

Physical Characteristics

• Authentic glass and plastic case
• Available colors: similar to RAL 9010 (pure white), on request similar to RAL 9005 (deep black)
• Input box installation
• Degree of protection IP 20
• Case dimensions: about 60 x 60 mm (L x H), installation depth about 10 mm
• Total weight: about 50g

Environmental and Operating Characteristics

• Ambient operating and storage temperature: -25°C to +85°C
• Maximum ambient humidity: 95% RH, avoid condensation
• Operating voltage: KNX bus voltage
• Maximum bus current: 19 mA
• Data output: KNX bus connection terminal +/-
• Maximum group addresses: 205

Special Features

• Touch area function of five or more buttons, configurable as a switch, selector, 8-bit or 16-bit encoder
