FAAC 10675201 770N Underground Swing Gate Motor Operator

770N Underground Swing Gate Motor Operator

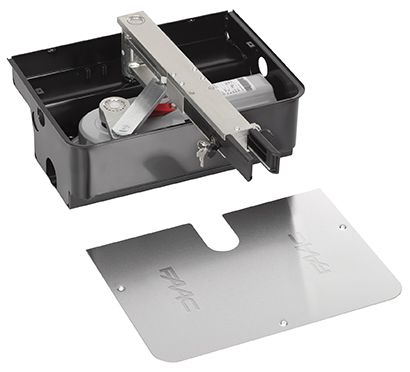

Underground electromechanical actuator Maximum width of a single door: 2 — 3.5 m (with electric lock) Max weight: 500 Kg Frequency of use: S3 - 30% - Invisible operator - Possibility to access the operator without removing the door - Manual unlocking with double lever accessible both from inside and outside the property (Patented) 770N 230V includes: an electromechanical actuator, installation accessories, two unlocking keys and a 12.5 µF 400V starting capacitor. The supporting box includes: a carrying case, a stainless steel lid, a door support bracket equipped with a lever release system, two release keys, installation accessories.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 380 W Max torque: 330 Nm (*) Max angular speed: 6 °/s (*) Max door weight: 500 Kg (see graphic) Max door opening angle: 110° (140° and 180° with optional kit) Ambient operating temperature: -20°C ÷ + 55°C Thermoprotection: 140°C Degree of protection: IP67 Weight: 12 Kg (with 14 Kg carrying case) Frequency of use: S3 30% Max door width: 2 m (3.5 m with electric lock) Dimensions (LxDxH): 362 x 153 x 127 (carrier box 430 x 307.5 x 214) mm Electronic equipment: Not included
