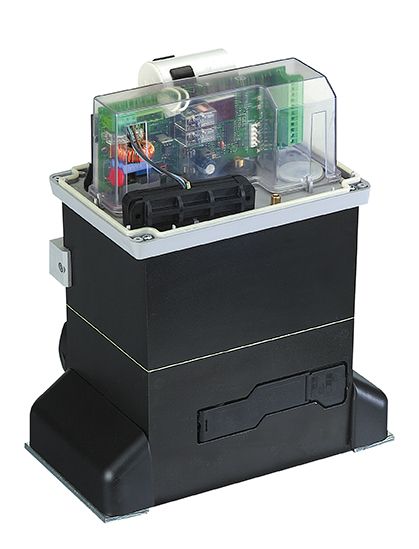

780D ELECTRONIC BOARD WITH TERMINAL BLOCK

The 780D board can be used with 746 E R and 844 E R gearmotors

TECHNICAL CHARACTERISTICS: Type of power supply:

Separate (faston connection on the printed circuit board) Network supply voltage:

220-240V~ 50/60 Hz Max power: 10 W Maximum motor power:

1,000 W Maximum

accessory load: 0.5

A Programming:

No. 3 keys (+, -

, F) and display, “basic” and “advanced” mode Status report:

On display

Operating logics: Automatic, Automatic “step by step”, Semiautomatic, Semiautomatic “step by step”, Safety, Semiautomatic B, Present man C, Mixed logic B/C Programmable functions: Operating logic,
Pause time, Push force, Open/close direction, Torque at the start, Braking, Failsafe, Pre-flash, Warning lamp, Timed exit, Electric lock in ap.
/ch., Safety logic in ap. e ch., Encoder, Anti-crush sensitivity, Slows, Partial opening time, Working time, Assistance request, Counter working time: Programmable (0 to 4 min) Pause
time: Programmable (0 to 4 min)
Pause time: Programmable (from 0 to 4 min) Motor force adjustment: Adjustable to
50 levels Terminal block inputs:
Open, Partial open, Safety at opening, Safety at closing, Stop, Coast, Power supply + Ground, End of operation, terminal box: Engine,

24V accessory power supply, 24V indicator lamp, Timed output, Electric lock control, Traffic light, Failsafe

Quick connector: 5-pin card connection, MINIDEC, DECODER or RP receivers Protection fuses: 2 Ambient operating temperature: -20°C

÷ +55°C
