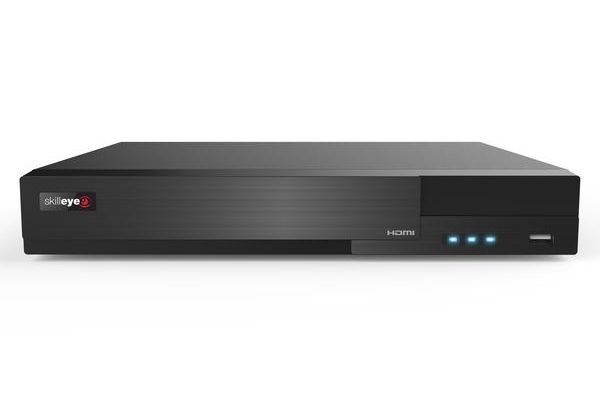

8-In NVR, H.265, max 8MP, 80Mbps, no POE, HDMI (4K)

SKILLEYE SEN-K8803S1 8-In NVR, H.265, max 8MP, 80Mbps, no POE, HDMI (4K)

MT Code: SKL_SEN-K8803S1
Manufacturer Code: SEN-K8803S1
Brand: SKILLEYE

TKH SkilEye 8-channel NVR, Embedded LINUX, max 8MP resolution, max 80Mbps total input, H.264/H.265, Dual Stream, HDMI (4K) /VGA (FullHD), 1 x USB 2.0, 1 x USB 3.0, Support for onboard IP Camera/1Out Audio via HDMI, no alarm I/O, supports on-board IP Camera I/O, Dewarp Fisheye support via Web Client and Mobile App. FACE Detection and ADVANCED VCA 1.0 function on 2 on-board video channels, Statistical Data Processing. 1x 10/100Mbps RJ45 Ethernet network card, ONVIF Pr compatible

Data Sheet

Feature	Value	Unit of measure
Codice a barre	8000002745376
Codice Produttore	SEN-K8803S1
Brand	SKILLEYE
Ingressi IP	8
Risoluzione Massima	8MP/4K
Bandwidth Ingresso	80	Mbps
I/O Allarme a bordo	no
I/O Audio a bordo	1/1, HDMI Output
Max HDD SATA	1, max 10TB
Porte LAN	1
Porte POE	no
Video Output	1xHDMI (4K) 1xVGA(FullHD)
Installazione Rack	no
Fanless	si
Dewarping Fisheye	si
Face Recognition	no
VCA 1.0 a bordo	si (max 2 canali)
Gestione VCA 2.0	si
RAID	no
Supporto Modulo I/O SEE-0108G01	si
