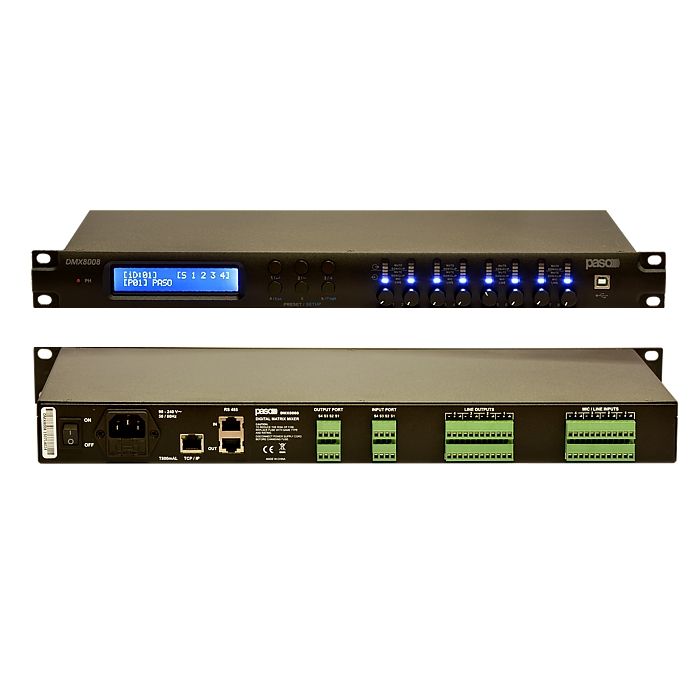

PASO DMX8008 8 IN x 8 OUT digital mixer matrix

8 IN x 8 OUT digital mixer matrix

The DMX8008 model is an 8-input x 8-output multi-application digital matrix/mixer designed on a DSP that works at 48/96 kHz and 24 bits of resolution; specially designed for commercial and professional applications such as conference rooms, auditoriums, public entertainment and entertainment venues. The device has 8 balanced MIC/LINE inputs, 8 balanced line outputs, 8 logical IN/OUT control ports, TCP/IP and RS485 In/Out connections; it offers complete addressing between inputs and outputs for multi-zone applications where the remote panel DMP8008 provides dual control functions on a single or global zone; the complete configuration of two dynamic algorithms such as N.O.M. and GAIN SHARING guarantee full functionality of the DMX8008 as an Automixer. For each input channel, it is possible to select the MIC/LINE sensitivity, select a first-order Lo/Hi pass filter, configure a 3-band parametric EQ, configure the Noise Gate and set up anti-feedback based on the “Pitch Shifting” algorithm. For each output, a 5-band parametric EQ, crossover filters up to the fourth order, a compressor and peak limiter section, phase control and Delay are available; 8 IN/OUT logic ports complete the interface to other systems (e.g., it is possible to recall room scenarios and synchronize them to a particular audio preset). In addition, each input has a priority level selection for managing emergency messages and microphone signals. On the front panel, 8 potentiometers are available for fine adjustment of the sensitivity on the microphone input channels. The front panel is equipped with 8 groups of 6 LEDs to indicate the status of the inputs and outputs, a backlit display combined with a group of 6 double function keys that allow you to set up and configure the network. The device is equipped with PC software and App for iPad® that allow the “real time” audio configuration and adjustment of a network with up to 32 connected units.
