8 Port Unmanaged Switch 10/100/1000Mbps Base-T PO

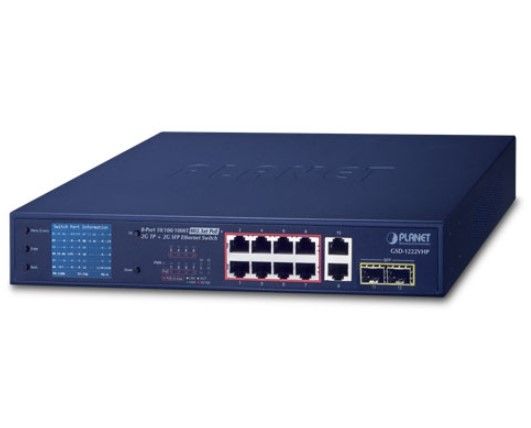

SKILLEYE GSD-1222VHP 8 Port Unmanaged Switch 10/100/1000Mbps Base-T PO

MT Code: SKL_GSD-1222VHP
Manufacturer Code: GSD-1222VHP
Brand: SKILLEYE

Unmanaged switch 8 ports 10/100/1000Mbps Base-T POE/POE+ (IEEE 802.3af/802.3at) + 2 ports 10/100/1000Mbps Base-T on RJ45 connector + 2 SFP 1000X ports. LCD display for quick access to programming. POE 48VDC power supply on 8 RJ45 ports, max 30W per port, max 120W in total. EXTENDED MODE functionality up to 10Mbps full duplex, 30W PoE, up to 250 meters. Power supply 100-240VAC, 50/60Hz, 130W max. Dimensions (W x D x H): 180 x 280 x 44mm. Weight 1.8kg. Operating temperature -10-60 degrees C.

Data Sheet

Feature	Value	Unit of measure
Codice Produttore	GSD-1222VHP
Brand	SKILLEYE
Alimentazione	100-240V AC
Porte Totali	12
Porte PoE/PoE+	8
Standard PoE	IEEE 802.3af / 802.3at
Potenza PoE per porta	30	W
Budget PoE Totale	120	W
Porte Up-link RJ45	2
Porte SFP	2
Velocità Porte SFP	1000X
Display	Display LCD per accesso rapido alla programmazione
Modalità Extended	Sino a 10Mbps full duplex, 30W PoE, sino a 250 metri
Alimentazione	100-240VAC, 50/60Hz
Temperatura di funzionamento	-10 ~ 60	°C
Peso	1.8	kg
