FAAC 109896 400v Three-phase Motor Gear Motor For 844 R THREE-PHASE Sliding Gates

400v Three-phase Motor Gear Motor For 844 R THREE-PHASE Sliding Gates

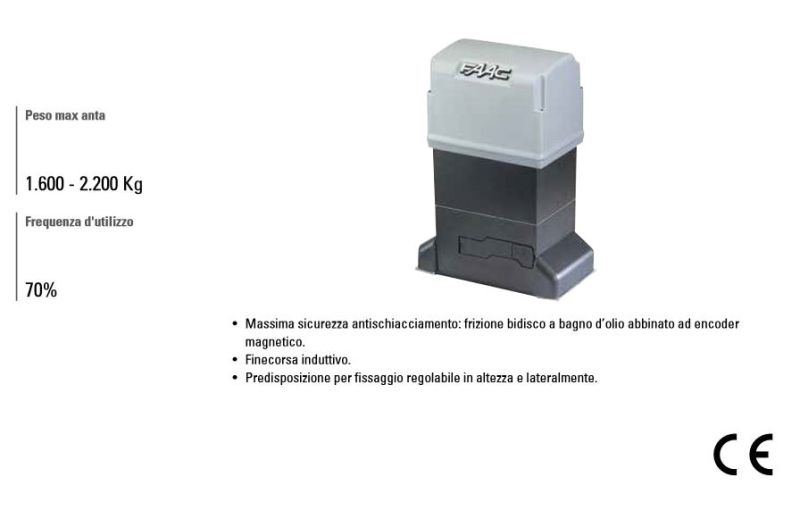

400V gearmotor Max door weight: 1,600 — 2,200 Kg Frequency of use: 70% - Maximum anti-crush safety: two-disc oil-filled clutch combined with a magnetic encoder. - Inductive shutter - Arrangement for adjustable height and side mounting. Package: a gear motor designed for rack application without pinion and without electronic board, end blades for mechanical assembly, release key, screw cover.

TECHNICAL CHARACTERISTICS: Network supply voltage: 380-415V~ 3 50/60 Hz Electric motor: Three-phase asynchronous Max power: 950 W Max torque: 62 Nm Maximum thrust force: 2500 N (Z12) — 1900 N (Z16) — 1500 N (Z20) Reduction ratio: 1:30 Max leaf width: 40 m (Z16) — 50 m (Z20) Speed regulation and motor control: No Window opening and closing: Inductive with sheet Sprocket: No Encoder: No Force adjustment: Double disc friction in oil bath Ambient operating temperature: -20°C ÷ +55°C Thermoprotection: 155°C Degree of protection: IP44 Weight: 15 Kg Oil type: FAAC HP OIL Dimensions (LxDxH): 277 x 155 x 388 mm Maximum door weight: 2,200 Kg (Z12) — 1,600 Kg (Z16) Frequency of use: 70% Electronic equipment: Not compressed+
