FAAC 202254 884 ELECTRONIC BOARD WITH PACKAGING
- MT Code
- FAA_202254
- Manufacturer Code
- 202254
- Brand
- FAAC

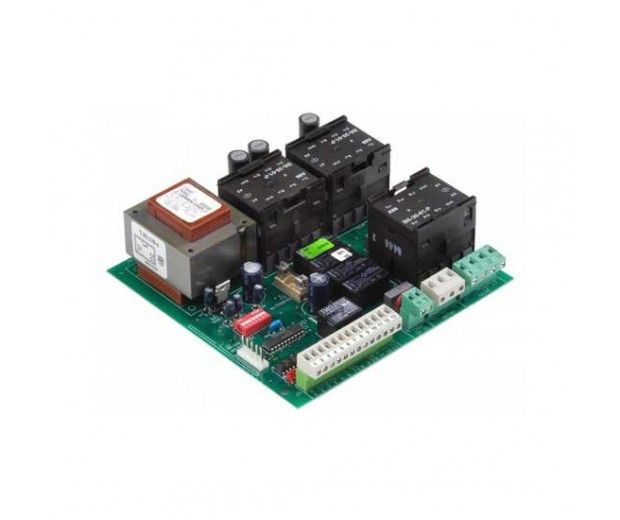

884 ELECTRONIC BOARD WITH PACKAGING 884T
electronic board (incorporated into automation) for 400V 884 MC 3PH gearmotor TECHNICAL CHARACTERISTICS
: Model: 884T
Network supply voltage: 230V~ 3PH (+6% -10%) 50 (60) Hz - 400V~ 3PH+N (+6% -10%) 50 (60) Hz
Max motor power: 1,300 W
Max accessory load: 500 mA
Accessory supply voltage: 24V
Indicator lamp supply voltage: 24V~ (5W max)
Programmable functions: Pause time (5/10/15/30/60/120/180 sec), Logiche A1/A2/S1/S2/E1/E2/B/C, Preflash
Working time (time-out): 255 sec
Terminal block inputs: Open, partial open, stop, locking security, closing, running end
Terminal box outputs: Indicator lamp, blinker, motor, 24V accessory power supply
Protection fuses: 5 A transformer - 1.6 A accessories
Ambient operating temperature: -20°C ÷ +55°C
| Codice a barre | 8055195006438 |
|---|---|
| Codice Produttore | 202254 |
| Brand | FAAC |
