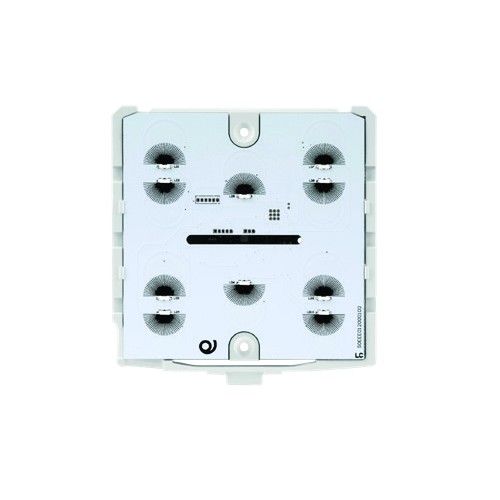

EELECTRON KP10C02KNX-1-3M 9025 KNX CAPACITIVE NUMERIC KEYPAD FOR CONTROL

The EELECTRON KP10C02KNX-3M numeric keypad is a specialized device for managing access control, integrated into the KNX® protocol. This product consists of 10-channel capacitive buttons, which can be configured using the ETS® software to communicate with the KNX Data Secure protocol.

Key Features

• Can be installed with glass covers, white or black, which show the numbers from 0 to 9 backlighting.
• Including a 2-stage thermostat with integrated PI controller for controlling heating and cooling appliances, valves and 2- and 4-pipe fan coils.
• On-board temperature probe and input on the rear side configurable as digital or analog.
• Possibility to connect an additional NTC probe (eelectron codes TS01A01ACC or TS01B01ACC - not included) to obtain a second temperature measurement.

Feedback and Indications

• RGB LED bar on the front side of the numeric keypad that indicates the recognition of the entered code and shows different (configurable) colors for reporting states or anomalies.
• Built-in buzzer that can be enabled or disabled to provide acoustic feedback when a key is pressed.

Compatibility and Installation

• Compatible with the main standards (Italian, German, English, etc.).
• Can be installed on a 2 or 3 module box.
