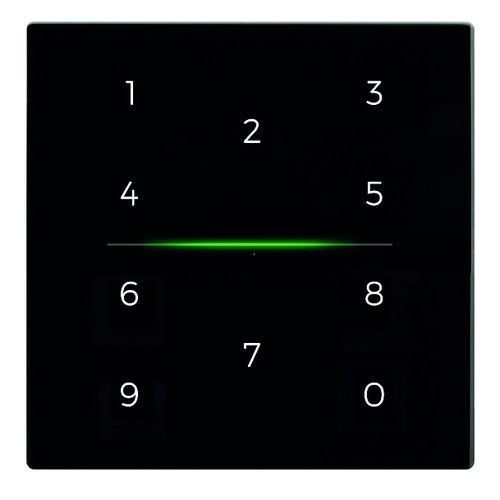

EELECTRON KP10C02KNX-3 9025 KNX CAPACITIVE NUMERIC KEYPAD FOR CONTROL

The KNX 9025 numeric keypad, code KP10C02KNX-3, is a specialized device for managing access control and offers a series of high-level technical functions.

Key Features

This device consists of 10-channel capacitive buttons, allowing a flexible and customizable configuration through the ETS® software to communicate with the KNX Data Secure protocol.

Installation and Design

The numeric keypad can be installed on boxes of 2 or 3 modules and is compatible with the main international standards. It is available with glass covers, white or black, which show the numbers from 0 to 9 that can be backlit.

Temperature Control and Accessories

The device includes a 2-stage thermostat with integrated PI controller, allowing the control of heating and cooling appliances, valves and 2- and 4-pipe fan coils. It is equipped with an on-board temperature probe and a rear input configurable as digital or analog, allowing the connection of an additional NTC temperature probe (eelectron codes TS01A01ACC or TS01B01ACC - not included).

Feedback and Indications

The numeric keypad integrates an RGB LED bar on the front side, which indicates the recognition of the entered code and shows different (configurable) colors for reporting states or anomalies. In addition, it includes a buzzer that can be enabled or disabled to provide acoustic feedback when a key is pressed.

Automation Features

The device is designed to be integrated into domestic and commercial automation systems, allowing the definition of welcome scenarios, the control of lights, shutters and other functions provided for in automation.

Other Features

• Compatibility with the main international standards (Italian, German, English, etc.).
• KNX communication interface for programming and isolated operation.
• Supervisable by eSuite or Horizone and compatible with 9025 readers of the same line.
