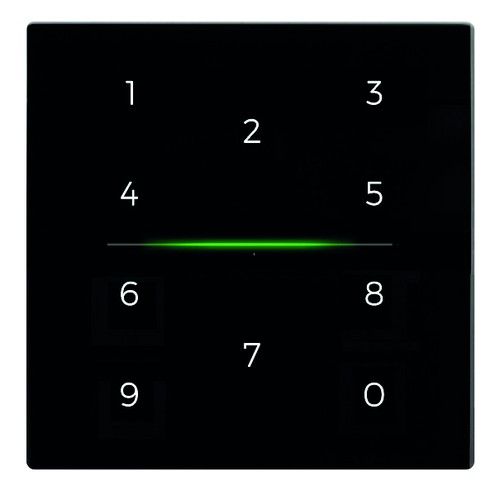

EELECTRON KP10C02KNX-3-3M 9025 KNX CAPACITIVE NUMERIC KEYPAD FOR CONTROL

The KNX EELECTRON KP10C02KNX-3M numeric keypad is a specialized device for managing access control and environmental regulation, designed to be integrated into automation systems based on the KNX protocol.

Key Features

This device consists of 10-channel capacitive buttons, which can be configured using the ETS® software to communicate with the KNX Data Secure protocol. The keyboard can be installed on built-in boxes of 2 or 3 modules and complies with the main international standards (Italian, German, English, etc.).

Interface and Feedback

The numeric keypad includes glass covers, white or black, with numbers from 0 to 9 backlighting. An integrated buzzer can be enabled or disabled to provide acoustic feedback when the keys are pressed. In addition, an RGB LED bar on the front side displays the recognition of the code entered and reports states or anomalies through configurable colors.

Environmental Control

The device integrates a two-stage thermostat with integrated PI controller, allowing the control of heating and cooling equipment, valves, 2- and 4-pipe fan coils, and others. It includes an on-board temperature probe and a rear input configurable as digital or analog, allowing you to connect an additional NTC temperature probe (eelectron codes TS01A01ACC or TS01B01ACC) for a second temperature measurement.

Logical and Programmable Functionalities

The numeric keyboard has 32 logical blocks for creating simple or complex logical expressions, using logical, threshold or conditional algebraic operators. You can implement predefined algorithms for proportional temperature and humidity controls, or calculate the dew point. The device also includes the “Virtual Pocket Logic” to manage on/off commands, dimmers, shutters and blinds, and other programmable command and control functions.

Technical Specifications

• Device dimensions (without plate): 71x71x25 mm
• 3-module frame dimensions: 130x92x11 mm
• Power supply: Via EIB/KNX 21 ÷ 32V DC bus, Max 30 mA
• Operating temperature: -5 °C +45 °C
• Storage temperature: -20 °C +55 °C
• Relative humidity (non-condensing): max. 90%

This device is ideal for residential, hotel and building applications, offering an intelligent solution for energy savings and environment management.
