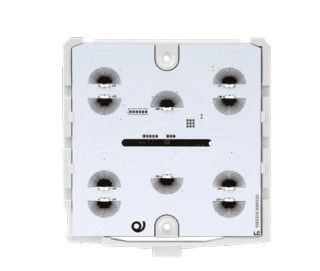

EELECTRON KP10C01KNX-1-3M 9025 KNX CAPACITIVE NUMERIC KEYPAD FOR ACCESS CONTROL WHITE

The EELECTRON KP10C01KNX-1-3M product is a KNX® numeric keypad designed for access control management. This device consists of 10 capacitive buttons that can be configured through ETS® to communicate with the KNX Data Secure protocol.

Key Features

• The capacitive buttons are backlit and show numbers from 0 to 9.
• The keyboard can be installed with glass, white or black covers.
• The device includes a 2-stage thermostat with integrated PI controller for controlling heating and cooling appliances, valves, 2- and 4-pipe fan coils, etc.

Control Functionality

• Each button can be configured to manage on/off controls, brightness adjustment, curtain and blind control, recall and control of scenes, sequences of objects, etc.
• The device is equipped with an on-board temperature probe and an input on the back side that can be configured as digital or analog.
• It is possible to connect an additional NTC temperature probe (eelectron code TS01A01ACC or TS01B01ACC) to obtain a second temperature measurement.

Feedback and Reports

• The numeric keypad includes an RGB LED bar on the front side that indicates the recognition of the code entered and shows different configurable colors to report states or anomalies.
• The device also integrates a buzzer that can be enabled or disabled to provide acoustic feedback when a button is pressed.

Compatibility and Installation

• The numeric keypad can be installed on boxes of 2 or 3 modules and is compatible with the main standards (Italian, German, English, etc.).
