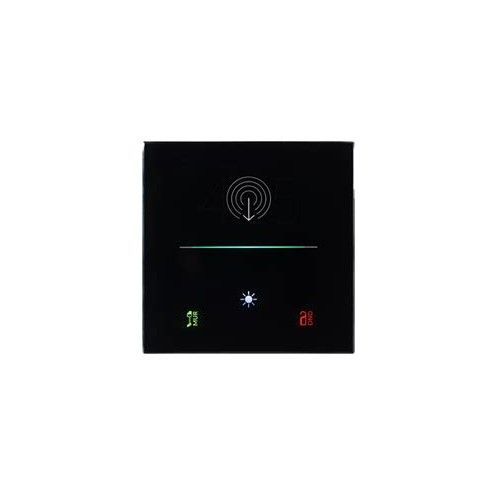

EELECTRON TH00C02KNX-1-3M 9025 TRANSPONDER POCKET WITH THREE BUTTONS - 3 MODULES -

The EELECTRON TH00C02KNX-1-3M device, also known as 9025 KNX Card Holder, is a specialized system for managing access control, integrated into KNX technology.

Key Features

This device uses RFID — MIFARE® technology and can be configured through the ETS® application to communicate with the KNX Data Secure protocol, ensuring secure and reliable communication.

Interface and Customizations

The device can be installed with customizable glass covers on request. The upper part of the glass is backlit, allowing you to illuminate the room number or a logo, both customizations available on request.

At the bottom there are 3 backlit capacitive buttons, freely configurable. Typically, these buttons are used for the CAMERA LIGHTS functions and for setting MUR (Do Not Disturb) and DND (Do Not Disturb).

BLE Technology and Beacon Functionality

The device integrates an antenna with BEACON BLE (Bluetooth Low Energy) function, compatible with iBeacon® and Eddystone® data formats. BLE technology allows messages to be sent to mobile devices equipped with an appropriate app.

You can set the transmission frequency and signal strength, offering flexibility in configuration.

Card Recognition and Signals

The card is inserted into a compartment from the top of the device. The reader's RGB LED bar indicates card recognition and shows different colors to indicate states or anomalies:

• Recognized card (welcome): Green
• Incorrect system code: Orange
• Unrecognized card ID: Red
• Wrong Card Date (validity expired): Yellow
• Wrong weekday (No entry day): Purple
• Wrong time of day (forbidden entry time): Blue-Cyan

Sound Signals

The reader also integrates a buzzer that can be activated through ETS parameters for the sound notification of anomalies.
