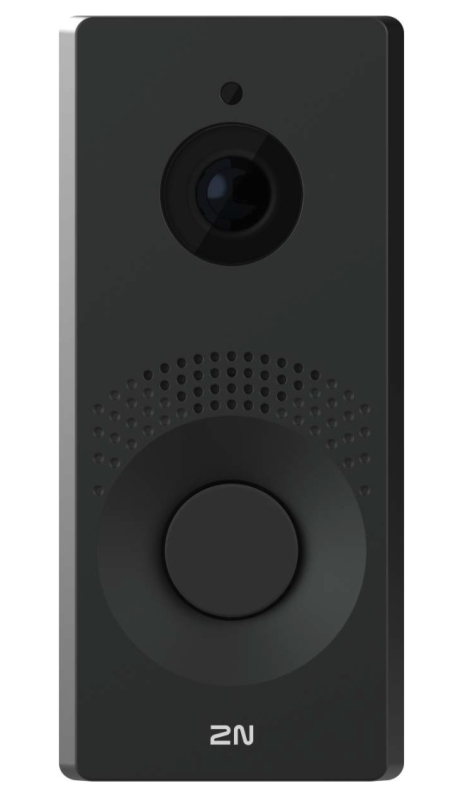

9158106 2N IP ONE BLACK WITH CAMERAA

MT Code: 2NN_9158106
Manufacturer Code: 9158106
Brand: 2N

The 2N IP One is a highly durable IP video intercom, designed specifically for family homes. This device is powered by the Axis ARTPEC-7 processor and stands out for its robustness and functionality.

Technical characteristics

The 2N IP One is equipped with a Full HD camera with a viewing angle of 156 horizontal degrees and 116 vertical degrees, ensuring a complete view of the area in front of the door. The camera uses a 1/2.7 inch CMOS sensor and a focal length of 1.93 mm, with infrared illumination for night visibility and WDR (Wide Dynamic Range) technology to optimize the image in varying light conditions.

Power and Connectivity

The intercom can be powered via PoE (802.3af with a maximum of 12.95 W) or through a 12 V/1 A DC power supply. Connectivity includes a 10/100BASE-TX LAN interface with auto-MDIX and an RJ-45 jack, recommending CAT-5e or higher cables.

Audio and Video Interface

The device has an integrated microphone and a 5 W RMS amplifier (Class D), with a 3 W speaker. The audio communication is two-way (full duplex) with echo cancellation (AEC). Supported audio codecs include G.711, G.729 and G.722, while H.264, MJPEG and Zipstream are available for video, with a maximum resolution of 1920 x 1440 pixels and a frame rate of up to 30 fps.

Security and Automation Features

The 2N IP One offers continuous surveillance functionality, immediate notifications in case of motion detection or increased noise, and the ability to open the door directly from the My2N app or via QR code. It is also compatible with home and office automation systems, thanks to open protocols and multiple plug-ins.

Design and Durability

The design is minimalist and elegant, with a high-quality anodized aluminum frame and finishes in three colors. The IP66 and IK08 certification guarantees exceptional resistance to vandals, water and dust. The button is customizable with the entire RGB spectrum and indicates the status of the intercom.
