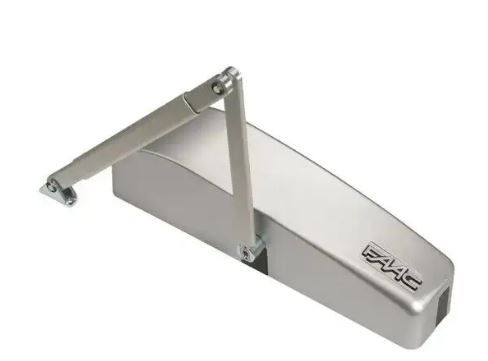

FAAC 1054142 Operator 950N2 Hinged Door Automation

Operator 950N2 Hinged Door Automation

Passage compartment (mm): 700 ÷ 1400 Max door weight with articulated arm (Kg): 367 Kg - 700 mm; 92 Kg - 1400 mm Maximum weight of door with flap arm (Kg): 286 Kg - 700 mm; 71 Kg - 1400 mm With electronic equipment, function selector and plastic cover The 950N2 automation, in compliance with EN16005, allows you to move the door, weighing more than 360 kg, in absolute silence and in continuous operation. The cover case can be made of anodized aluminum or ABS shaped in an innovative design. Model: 950N2 Network supply voltage: 220-240 V~ - 50/60 Hz Max power: 100 W Stand-by power without accessories: 5 W Frequency of use: 100% Electric motor: Motor powered at 24V Maximum accessory load: 1A - 24V Electric lock supply voltage: (N.O./N.C.) 24V/500mA max Dimensions (LxDxH): 530x160x105 mm Weight: 10 Kg Operation without mains voltage: Manual opening to push/pull - Spring closure Maximum opening angle of door: 100° ÷ 125° opening: 4 ÷ 10 s (adjustable) Closing speed adjustment: 4 ÷ 10 s (adjustable) Partial opening adjustment: 10% ÷ 90% of total opening Pause time: 0 ÷ 30 s Night break time: 0 ÷ 90 s Encoder: Standard protection sensor monitoring (EN16005): Standard (exclusive) Low Energy Movement (EN16005): Standard (excluded) Ambient operating temperature: -20°C ÷ +55°C Degree of protection: IP 23 (for internal use only) Compliance with standards: EN 16005; EN 61000-6-2; EN 61000-6-3; EN 13849-1; EN13849-2
