FAAC 2050042 950N2 OPERATOR WITHOUT CRANKCASE

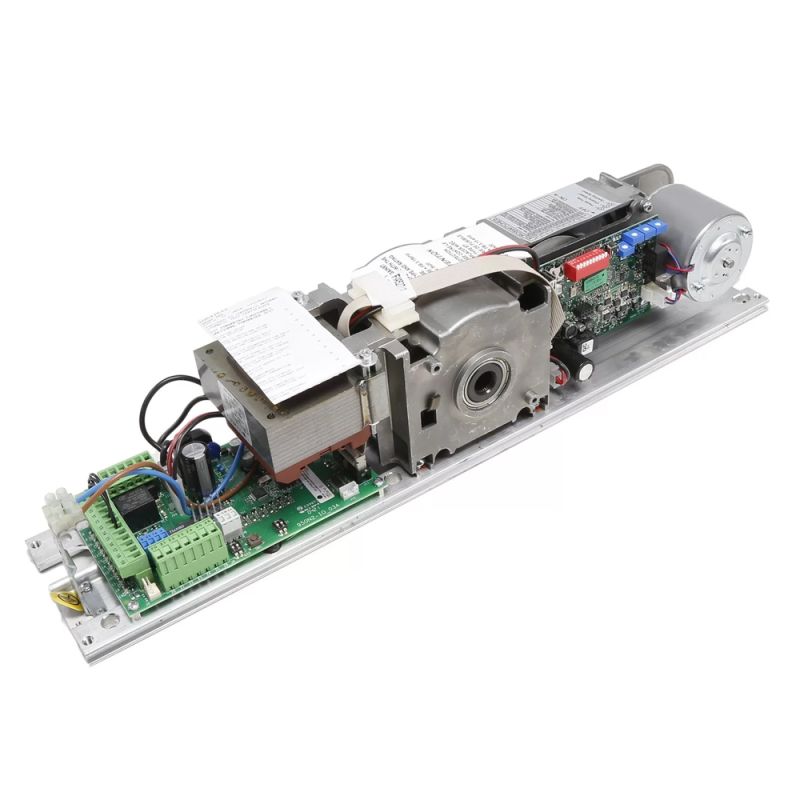

OPERATOR 950N2 WITHOUT CRANKCASE

Automation for hinged doors Leaf length: from 700 to 1400 Max door weight: from 286 to 367 Kg With electronic equipment, function selector, without cover case The 950N2 automation, in compliance with EN16005, allows you to move the door, weighing more than 360 kg, in absolute silence and in continuous service. Passage compartment (mm): 700 ÷ 1400 Max door weight with articulated arm (Kg): 367 Kg — 700 mm Max door weight with articulated arm (Kg): 92 Kg — 1400 mm Max door weight with skid arm (Kg): 286 Kg — 700 mm Max door weight with skid arm (Kg): 71 Kg — 1400 mm

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240 V~ — 50/60 Hz Max power: 100 W Stand-by power: 5 W Frequency of use: 100% Electric motor: 24V powered motor Max accessory load: 1A — 24V Electric lock supply voltage: (N.O./N.C.) 24V/500mA max Dimensions (LxDxH): 530x160x105 mm Weight: 10 Kg Operation in the absence of mains voltage: Manual push/pull opening - Spring closure Maximum door opening angle: 100° ÷ 125° Opening speed adjustment: 4 ÷ 10 s (adjustable) Closing speed adjustment: 4 ÷ 10 s (adjustable) Partial opening adjustment: 10% ÷ 90% of the total opening Pause time: 0 ÷ 30 s Night break time: 0 ÷ 90 s Encoder: Standard Protection sensor monitoring (EN16005): Standard (excludable) Low Energy Movement (EN16005): Standard (excludable) Ambient operating temperature: -20°C ÷ +55°C Degree of protection: IP 23 (for indoor use only) Compliance with standards: EN 16005; EN 61000-6-2; EN 61000-6-3; EN 13849-1; EN13849-2
