FAAC ACXL2RA_0322 ACCESS XL2-RA00000

MT Code: FAA_ACXL2RA_0322
Manufacturer Code: ACXL2RA_0322
Brand: FAAC

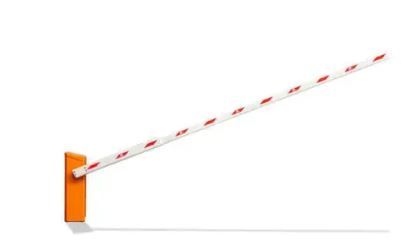

ACCESS XL2-RA00000

• Barriers with a rod length of up to 8.5 m • Minimum opening and closing time 6.0 sec. • High security thanks to the hedging kits available on request • Limited approval for the movement of people With its barriers up to 8.5 m long and the

safety grate or security grate with optional anti-overpass protection, Access XL2 is the ideal solution for extra-large or multi-lane entrances of dispatchers, business entrances and port facilities. The Access XL2 control system has a wide range of functionalities and is characterized by its extraordinary expansion potential through the use of plug-in modules. Five slots are available, for example for the integration of an Ethernet interface, a radio module or a counting module that allows you to determine the number of parking spaces still available inside the car park. All inputs and outputs can be configured individually by the user. Users can also choose from numerous input and output features. The opening and closing times, independent of each other, can be selected by choosing between three different options.

Rod: MicroBoom XL with support fork and anti-override hedge H1,3m
Rod length: 6m Opening/closing time:
6.0 sec. Energy consumption: Max. 17 W Drive technology:
MHTM Voltage:
85-264 VAC, 50/60 Hz
cycle: 100% Frame dimensions (L x W x H): 435 x 360 x 1164 mm Protection class:
IP 54 Temperature range: from -30 to
+55 °C Weight: 105 kg Standard colors:
2000 Control system: MGC

Integrated 2-channel detection module for induction loop: Standard Modular expansion of the control system:

Expandable Variable I/O assignment: Standard No. of

digital inputs:

8 No. of relay/digital outputs:

6/4 Input for photoelectric safety barrier with test:

Standard Selectable closing speed: Standard Selectable opening speed: Standard
