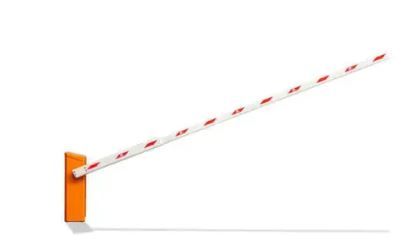

24v ACCESS XXL-RA00000 Automatic Barrier

• Barriers with a rod length of up to 10 m
• High security thanks to the hedging kits available on request
• Minimum opening and closing time 8.0 sec. • Limited approval for the movement of

people With its barriers up to 10 m long and the safety grate or safety grate with optional anti-override protection, Access XXL is the ideal solution for particularly large or multi-lane shipping entrances, company entrances and port facilities. The Access XXL control system has a wide range of functions and is characterized by its extraordinary expansion potential through the use of plug-in modules. Five slots are available, for example for the integration of an Ethernet interface, a radio module or a counting module that allows you to determine the number of parking spaces still available inside the car park. All inputs and outputs can be configured individually by the user. Users can also choose from numerous input and output features. The opening and closing times, independent of each other, can be selected by choosing between three different options

• Rod: MicroBoom XL with support foot and standard hedge
• Rod length: 9m
• Opening/closing time: 8.0 sec. Power consumption: Max.
• 30 W Drive technology:
• MHTM
• Voltage: 85-264 VAC, 50/60 Hz Duty cycle:
• 100% Frame dimensions (L x W x H):
• 435 x 360 x 1164 mm Protection class: IP 54 Temperature range: -30 to
• +55 °C Weight:
112 kg Standard colors: RAL
• 2000 Control system:
• MGC Pro 2-way detection module
