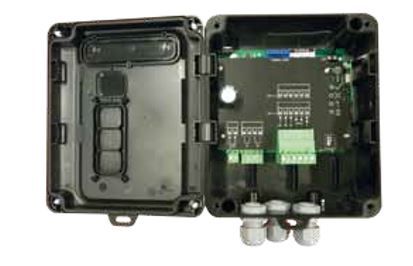

ABTECNO JCM-1000180 ACCESS5K - ADVANCED ACCESS CONTROL CENTRAL

· Access control 868 MHz 2 relays, 5000 codes.

· 2 relay outputs, assignable to specific time slots per user or anti-panic group of users (activating any relay as alarm activation).

· Removable micro SD memory.

· Power supply: 12/24V ac/dc, supporting up to 2 proximity readers connected directly to the device. If you add an additional power source, up to 20 readers in the same network (L-BUS only).

· Recommended cable lengths: cable sections 0.22/0.35/0.5 mm2 up to 100/150/200 m respectively if category 5 cable.

· Clock and calendar to keep date and time.

· IP65.

· Kill-pass, validity date and countdown functions achievable through proximity readers.

· Front lid with hinges to prevent falling when opened.

· Box dimensions 152 × 180 × 85 mm.

Versatility

• Access control systems designed to meet the management needs of small and medium-sized communities.

• Management of users only using the ASSISTANT tool (6.0 and above) to avoid vandalism.

• Control unit with 868 MHz receiver and input for 13.56 MHz JCM proximity readers (BUS-L, distinguishing up to 4 different channels) and/or other readers (Wiegand 26, only 2 channels).

• Possibility of using different activation elements (programmable emitters, bi-technology emitters, keys and proximity cards).

• Management of 2 output relays configurable in pulse or bistable mode, expandable to 6 (exclusive ACCESS-5K+) using the TL-CARD which also allows the anti pass-back function.

• Can be installed indoors and outdoors, IP 65 protection rating.

• Management of users up to 5000.

• Password protected access.

Ease

• Quick and intuitive installation.

Advanced management of community installations

Assistant programming tool features expanded to:

• Management of codes up to 5000 (activations, terminations, replacements and reserves).

• Display of the latest events up to 2000, filterable and exportable in files.

• Management of week-level schedules, individually assignable to groups and/or to any of the relay outputs.

• Access management via FREE groups.

• The ACCESS-5K control unit saves events and users in SD, therefore, it requires that the computer that manages the SOFT ASSISTANT must have a micro SD memory input.

Remote maintenance (optional)

Furthermore, by installing the GSM-CARD, you will be able to carry out maintenance on the device from your office, saving the time and cost of travel.
