Active Balun Receiver for 1 HD video channel

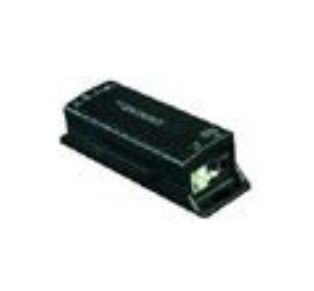

SKILLEYE SEU-R1AV01 Active Balun Receiver for 1 HD video channel

MT Code: SKL_SEU-R1AV01
Manufacturer Code: SEU-R1AV01
Brand: SKILLEYE

Active Balun Receiver for 1 HD video channel (HD-TVI/AHD/HD-CVI), Reception up to 400m with active TX and HD-TVI 1080p signal, up to 300m with active TX with AHD 1080p. BNC-M connectors for video and terminal block for UTP. Passband 0/75MHz, Anti-Interference >60dB. Dip Switches for signal optimization based on transmission distance. Surge protection on 2KV video signal compliant with IEC61000-4-5; Protection on 2KV UTP line compliant with IEC61000-4-5; 6KV (Contact Discharge) and 8KV (Air Discharge) ESD protection compliant with IEC61000-4-2. Power supply 12/20VDC or 9/24VAC. Operating temperature -10 degrees C / 55 degrees C, relative humidity 0/95 percent. Dimensions 113mm×45.5mm×29mm. ABS plastic material. Color Black. Weight 65g.

Data Sheet

Feature	Value	Unit of measure
Codice Produttore	SEU-R1AV01
Brand	SKILLEYE
Alimentazione	9-24V AC
Canali video	1
Tecnologie video supportate	HD-TVI, AHD, HD-CVI
Distanza massima di trasmissione	sino a 400 (HD-TVI 1080p), sino a 300 (AHD 1080p)	mt
Connettori	BNC-M e morsettiera per UTP
Banda passante	0÷75	MHz
Anti-interferenza	>60	dB
Protezione da sovratensioni	conforme IEC61000-4-5 e IEC61000-4-2
Alimentazione	12÷20VDC o 9÷24VAC	V
Temperatura di funzionamento	-10°C ~ +55°C	°C
