FAAC 104413 ACTUATOR 413

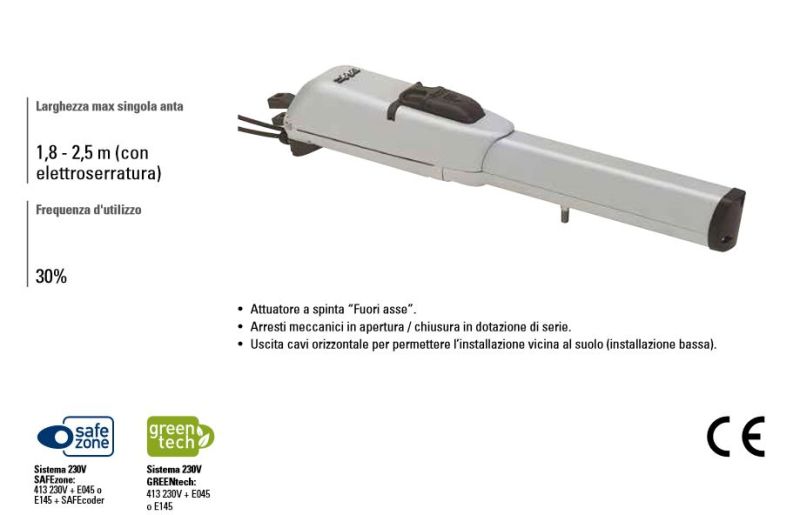

ACTUATOR 413

Maximum width of a single door: 1.8 - 2.5 m (with electric lock) - Frequency of use: 30%

“Off-axis” push actuator. - Mechanical arrests when opening or closing are supplied as standard. - Horizontal cable outlet to allow installation close to the ground (low installation).

413 230V includes: an electromechanical actuator, installation accessories, an unlocking key, a 6.3µF 400V starting capacitor. The LS version includes electric running windows.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 250 W Maximum thrust force: 2000 N - Max rod speed: 16 mm/s - Stem stroke: 300 mm (350 mm without mechanical stops) Maximum door opening angle: 110° Ambient operating temperature: -20°C ÷ + 55°C Heat protection: 140°C Degree of protection: IP54 Weight: 7.8 Kg Frequency of use: S3 — 30% Maximum door width: 1.8 m (2.5 with electric lock) Fixing brackets: Rear connection to solder/screw - front connection to solder/screw Dimensions (LxDxH): 777 x 101 x 152 mm Electronic equipment: Not included
