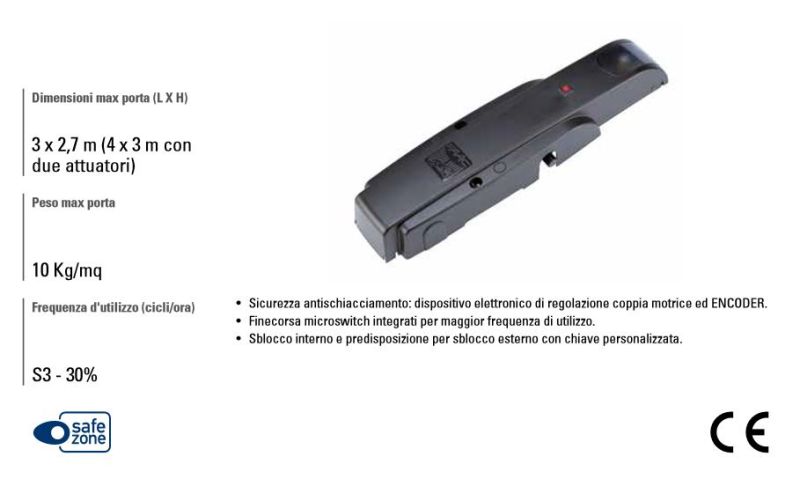

FAAC 110553 550 S S/L ACTUATOR

550 S S/L ACTUATOR

For counterweighted overhead doors - Ideal for domestic garages with overhead doors up to 3 m wide - Master/Slave version for width up to 4 m - Anti-crush safety guaranteed by an electronic torque adjustment device and built-in ENCODER - Irreversible - Internal unlocking and provision for external unlocking with personalized key - Preparation for assembling the actuator with a motor at the bottom or top - Integrated microswitch windows for greater frequency of use.

TECHNICAL CHARACTERISTICS: Network supply voltage: 230V~ 50Hz Electric motor: Single-phase asynchronous Max power: 350 W Max torque: 300 Nm Max angular speed: 12 °/s Opening time (90°): 15 s Encoder: Magnetic Ambient operating temperature: -20 °C ÷ +55 °C Heat protection: 140 °C Degree of protection: For indoor use only (IP31) Weight: 7.5 Kg Dimensions (LxDxH): 670 x 175 x 120 mm
