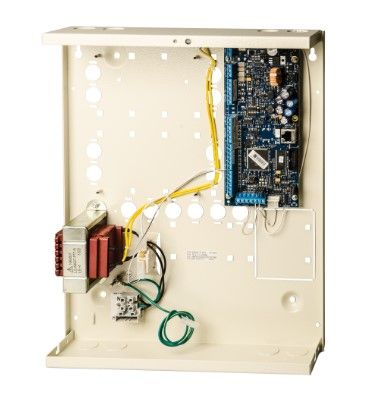

ADVISOR ADVANCED control unit in a small metal enclosure with 8 supervised inputs expandable to 32 with wired inputs

ARITECH INTRUSION ATS1500A-SM ADVISOR ADVANCED control unit in a small metal enclosure with 8 supervised inputs expandable to 32 with wired inputs

MT Code: ARI_ATS1500A-SM
Manufacturer Code: ATS1500A-SM
Brand: ARITECH INTRUSION

ADVISOR ADVANCED control unit in a small metal enclosure. with 8 supervised inputs expandable to 32 with wired inputs. via radio or mixed (max 7 DGP concentrators). Up to 16 inputs for inertial sensors. Controlled by a keyboard with LCD display equipped with a help button for online information. up to a maximum of 8 keyboards/readers (RAS). Up to 4 independent systems (areas) each with 2 partial inserts. Pre-configured outputs for external siren. internal and flashing. Plug-in expansions for inputs and outputs. Maximum 50 users. Maximum 128 Outputs. PSTN pluggable telephone dialer (ATS7700) included. Event sending and management via SMS (with ATS7320. not included). Programmination. via computer. remote or local using the integrated USB port. IMQ Certified Safety Systems EN50131 Safety Grade 3. Environmental Class II.

Details

8 integrated zone inputs

Max 32 zones: wired, wireless or mixed

Economic expansion of the input and output plug-in Up to 16 inputs

for shock sensors

4 areas

Up to

2000 users (max 65532 with door/elevator controller)

EN50131 Security Grade 2/Environmental Class 2

USB port for local configuration Plug-in PSTN combiner for reporting

or configuration including Multilingual, own language for

each user IP alarm reporting with module
