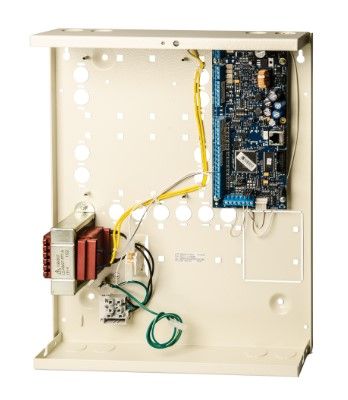

ADVISOR ADVANCED control unit in metal enclosure. with 8 supervised inputs expandable to 128 with wired inputs

ARITECH INTRUSION ATS3500A-MM ADVISOR ADVANCED control unit in metal enclosure. with 8 supervised inputs expandable to 128 with wired inputs

MT Code: ARI_ATS3500A-MM
Manufacturer Code: ATS3500A-MM
Brand: ARITECH INTRUSION

ADVISOR ADVANCED control unit in metal enclosure. with 8 supervised inputs expandable to 128 with wired inputs. via radio or mixed (max 15 DGP concentrators). Up to 16 inputs for inertial sensors. Controlled by a keyboard with LCD display equipped with a help button for online information. up to a maximum of 16 keyboards/readers (RAS). Up to 8 independent systems (areas) each with two partial inserts. Preconfigured outputs for external siren. internal and flashing and for input state area 1. Plug-in expansions for inputs and outputs. Maximum 200 users. Maximum 128 Outputs. Integrated PSTN telephone dialer (ATS7700). Event sending and management via SMS (with ATS7320. not included). Programmination. via computer. remote or local using the integrated USB port. Certified EN50131 Safety Grade 3. Environmental Class II.

Details

8 integrated zone inputs

Max 128 zones: wired, wireless or mixed

Economic expansion of the input and output plug-in Up to 16 inputs

for shock sensors

8 areas

Up to

2000 users (max 65532 with door/elevator controller)

EN50131 Security grade 3

USB port for local configuration Plug-in PSTN combiner for reporting or configuration included Multilingual, own language for

each user IP alarm reporting with IP/GPRS/3G/4G

module

optional of the TDA74xx-4
U/D remote range on PSTN or module from the optional TDA74xx-4 range
Automatic insertion, schedules, timed outputs Standard access control without additional door controllers Full access control using
ATS125x or CDC4 door/lift controllers
