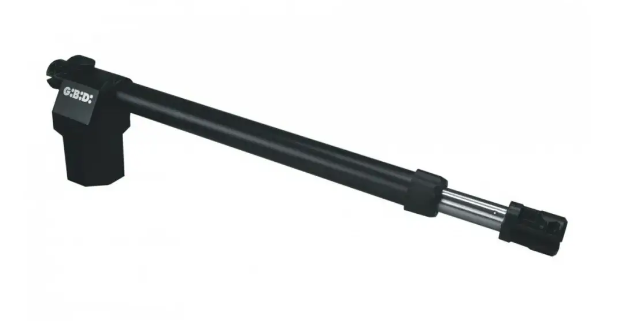

AGO624E 24V SX Electromechanical Operator For Swing Gates

GIBIDI 17024/SX AGO624E 24V SX Electromechanical Operator For Swing Gates

MT Code: GBD_17024/SX
Manufacturer Code: 17024/SX
Brand: GIBIDI

230 Vac and 24 Vdc electromechanical operator with encoder, dedicated to medium and large swing gates. Suitable for residential and condominium use

EASY TO INSTALL

Thanks to the adjustable brackets without the need for welding.

QUIET AND FAST

Made with steel, bronze-aluminum gears. Thanks to this combination, a high and adjustable speed of movement can be managed.

TECHNOLOGICAL AND SAFE

The 24 Vdc version is equipped with an encoder for the simplified management of automatic programming and adjustment of the integrated anti-crush sensitivity. The highest level of safety, as required by EN 12453

DESIGN AND RELIABILITY

The most compact in its category with a tapered and discreet design that adapts to any type of gate. Made entirely of die-cast aluminum and powder-coated steel. The stem is made of stainless steel

ANTI BLACK-OUT

Thanks to the practical kit of optional batteries, it is able to ensure the functionality of the gate even in the event of

a blackout.

Use: RESIDENTIAL/INTENSIVE

Frequency of use: 90%

Motor supply: 24 Vdc

Absorbed power: 0.5 - 5.5 A

Degree of protection: IP43 Rod speed:

18 mm/s Max. rod stroke:

600 mm Max.

thrust force: 1500 N Force adjustment: ELECTRONIC speed adjustment: YES Max. leaf length:

5 m Operating temperature:
