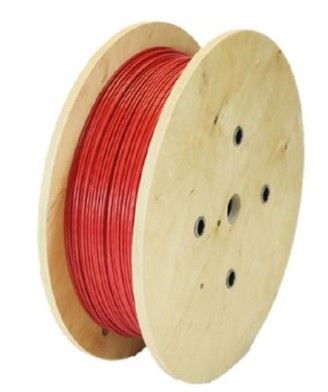

ARITECH FIRE ADE78-0100 AlarmLine Digital EN non-resettable linear heat detector

AlarmLine Digital EN non-resettable linear heat detector (digital thermosensitive cable). 78GRADIC operating temperature. EN54-28 certificate. Operating temperature -40 DEGREES +45 DEGREES C. Outer protective sheath made of polymer. Red color.

Generality The ADE78-0100 digital thermosensitive cable is a non-resettable LHD (Digital Linear Heat Detection) linear heat detector with a fixed alarm threshold of 78° C. The ADE cable range constitutes the linear heat detection system that can be used in many applications where other types of detection are not suitable.

Operability
The LHD ADE digital thermosensitive cable line consists of a pair of low-resistance intertwined trimetallic conductors coated with special temperature-sensitive polymers. When the alarm temperature, for which they were designed, is reached, the polymer that insulates the two conductors softens, the tension of the intertwined conductors allows them to come into contact, generating a short circuit on the line.. The digital thermosensitive cable must be used in combination with the ADELCU-2 control unit and the end-of-line module (EOL) and can be connected to any fire monitoring equipment through any monitored input, such as a conventional detection zone or addressable interface module, thus allowing the reporting of

Indication of the alarm position
The control unit is able to identify, along the cable route, the point where the alarm condition was generated. The position of the alarm is then indicated on the display on the module. Both areas of the control module are displayed on the display

Cable installation accessories for all applications
A wide range of 'edge', 'A', 'P', and 'T' clips are available to allow the correct installation of the thermosensitive cable. The clips thermally insulate the thermosensitive cable, keeping it at a correct distance from cable channels, metal structures, ceilings and walls
