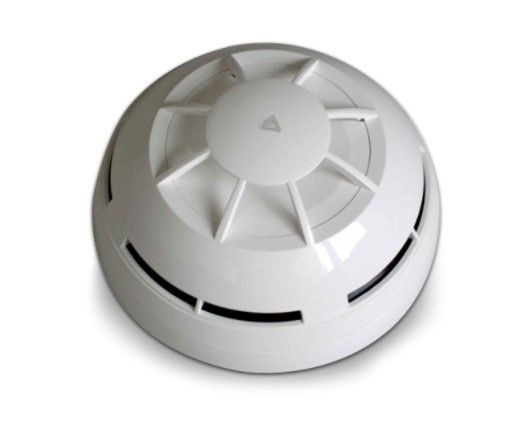

INIM FIRE V100 Argus VEGA series addressed analog optical smoke detector with integrated isolator

Argus VEGA series addressed analog optical smoke detector with integrated isolator - programmable sensitivity. 240 addresses. CPR EN54pt7 certification.

Thanks to its high processing capacity, it is able to efficiently analyze the state of the protected area, ensuring high immunity to false alarms.

The V100 is an addressed analog optical smoke detector (based on the Tyndall effect). The particular design of the sampling chamber and the labyrinth that allows air flow to access it guarantee high immunity to dirt present in the environment and ensure a long period of optimal operation between two subsequent maintenance. The detector is equipped with a short circuit isolator capable of isolating a possible short circuit on the Loop. The three-color LED placed in the center of the detector ensures 360° visibility and is able to signal an alarm condition (red), a fault or an opening of the isolator (yellow). In addition, the LED can be activated manually from the control panel (green) to facilitate the location of the device. The detector has an output for controlling an optional remote signaling LED (FI100). The sensitivity of the detector can be set directly from the control panel, by bringing a magnet closer to the side of the device, the alarm is activated in order to perform a functional test of the device and its wiring.
