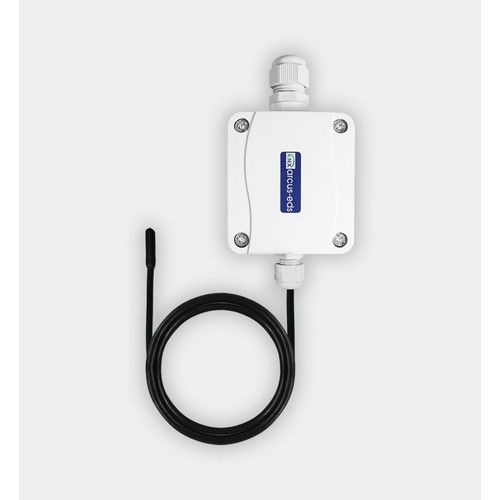

ARCUS-EDS 30511057 SK10-TC-GTF-TPE

ARCUS-EDS 30511057 Product Description

The ARCUS-EDS 30511057 product is a temperature sensor designed to be integrated into KNX systems, offering accurate and reliable temperature measurement in various environments.

Technical characteristics

This temperature sensor has a resolution of 0.02°C and a class B accuracy, with an error of ± (0.3°C + 0.005*T) [1).

Temperature Range

• The temperature range covered by the sensor varies depending on the type of sensor used, but generally includes a range from -40°C to +105°C [1).

Power and Energy Consumption

• The sensor operates with a supply voltage between 21 and 32 VDC, typical of the KNX bus.
• The power consumption is approximately 240 mW at 24 VDC [1).

Operating Environment

• The operating ambient temperature of the KNX module is between -25°C and +80°C.
• The storage temperature is between -25°C and +80°C.
• The permissible relative humidity is between 0% and 100% without condensation [1).

Types of Sensors

• The product includes various types of sensors, such as contact sensors, surface sensors and immersion sensors, each with different lengths (for example 1.5m PVC, 1.5m Silicon, etc.) [2).

Integration with the KNX System

• The sensor is equipped with an integrated bus coupler and does not require an auxiliary power supply.
• It is compatible with ETS (Engineering Tool Software) software starting with version 4 or higher [1).

This temperature sensor is ideal for applications in domestic, commercial and industrial environments, where precision and reliability in temperature measurement are critical.
