INIM FIRE VMC120 Argus addressed analog module 1 output 2 contacts
- MT Code
- INM_VMC120
- Manufacturer Code
- VMC120
- Brand
- INIM FIRE

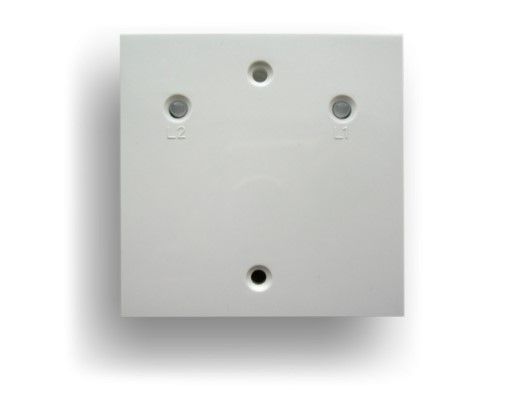

Argus addressed analog module 1 output 2 contacts (Form C) wall mount.
The VM series modules provide inputs/outputs (depending on the module model) controlled/controlled by the control unit through the Loop. Thanks to these modules, it is possible to interface any type of detector (Input Modules) to the Loop or activate (Output Modules) any type of device (Sirens, Light Plates, Electromagnets for fire doors, etc.). Each module is equipped with a short circuit isolator capable of isolating a possible short circuit on the Loop. The three-color LED is able to signal an alarm condition (red), a fault or an opening of the isolator (yellow). In addition, the LED can be activated manually from the control panel (green) to facilitate the location of the device. The detector can be used with the control panels of the series - SMART Loop - SMART Light The address of the module (from 1 to 240) is set: - Using the VPU100 Programmer - With the maneuver of self-addressing from the control unit
Codice Produttore | VMC120 |
---|---|
Brand | INIM FIRE |
IST 16 VMxxx 1x00 ITA
|
306.8 kB |
