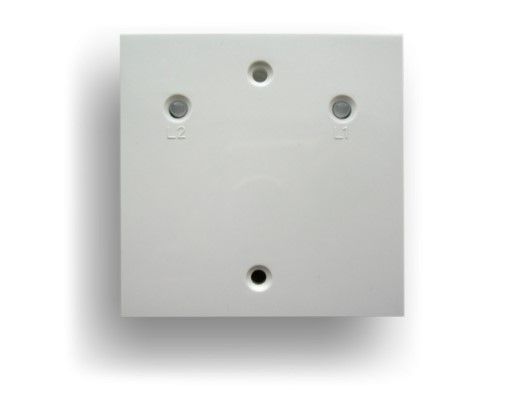

INIM FIRE VMC100 Argus addressed analog module 1 supervised wall mount output
- MT Code
- INM_VMC100
- Manufacturer Code
- VMC100
- Brand
- INIM FIRE
Argus addressed analog module 1 supervised wall mount output.
The VM series modules provide
inputs/outputs (depending on the
module model) controlled/controlled by the control unit
through the Loop. Thanks to these modules, it is
possible to interface any type
of detector (Input Modules) to the Loop or activate
(Output Modules) any type of
device (Sirens, Light Plates,
Electromagnets for fire doors, etc.).
Each module is equipped with a
short circuit isolator capable of isolating a possible
short circuit on the Loop. The three-color LED is
able to signal an alarm condition
(red), a fault or an opening of the isolator
(yellow). In addition, the LED can be activated
manually from the control panel (green) to
facilitate the location of the device.
The detector can be used with the
control panels of the series - SMART Loop - SMART Light
The address of the module (from 1 to 240) is
set: - Using the VPU100 Programmer - With the maneuver of self-addressing from the control unit
Codice Produttore | VMC100 |
---|---|
Brand | INIM FIRE |
IST 16 VMxxx 1x00 ITA
|
306.8 kB |
