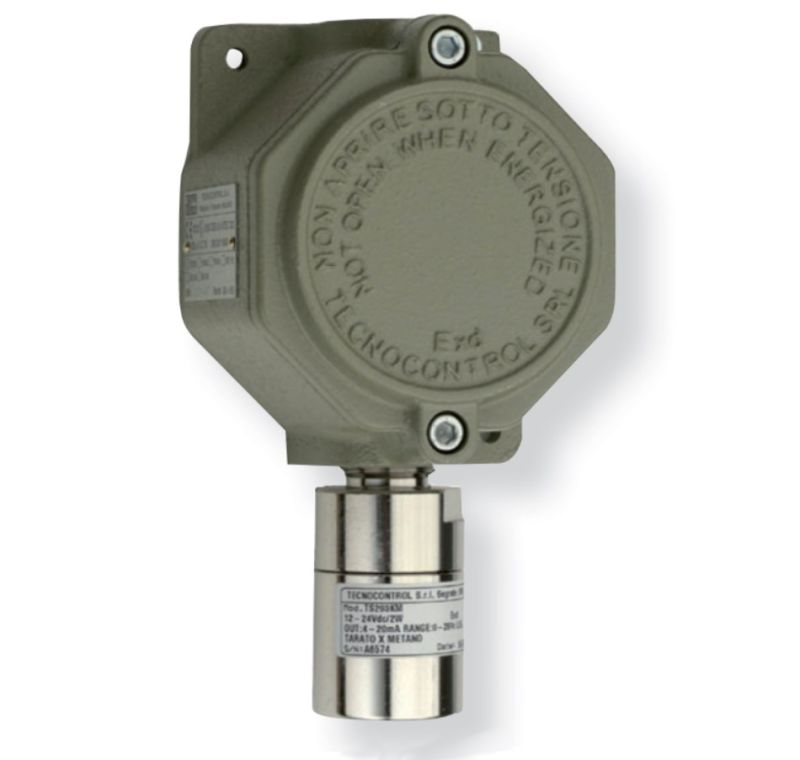

TECNOCONTROL SE138EA-H ATEX Exd gas detector - relay - electrochemical sensor for NH3 - high performance
- MT Code
- TCC_SE138EA-H
- Manufacturer Code
- SE138EA-H
- Brand
- TECNOCONTROL
Description
ATEX Exd gas detector - relay - electrochemical sensor for NH3 - high performance
Gas detectors in explosion-proof housing for use in areas with the presence of potentially explosive atmospheres, certified CESI 03 ATEX 323
• Power supply 12÷24Vdc
• Atex marking: II 2G Ex d IIC T6 Gb
• No. 3 solid state alarm relays. Resistive load MAX 24V/1A SPST • No. 1 solid state fault relay. Resistive load MAX 24V/1A SPST • Alarm levels (Relay) programmable via Dip-Switch
• No. 1 linear output 4÷20 mA
• Polarized plug-in terminals
Gas detected: Ammonia
Cartridge change: ZSEA2/EX
Measurement range: 0÷300 ppm
Calibration cylinder: BO501
Average life in clean air: 2 years
Gas detectors in explosion-proof housing for use in areas with the presence of potentially explosive atmospheres, certified CESI 03 ATEX 323
• Power supply 12÷24Vdc
• Atex marking: II 2G Ex d IIC T6 Gb
• No. 3 solid state alarm relays. Resistive load MAX 24V/1A SPST • No. 1 solid state fault relay. Resistive load MAX 24V/1A SPST • Alarm levels (Relay) programmable via Dip-Switch
• No. 1 linear output 4÷20 mA
• Polarized plug-in terminals
Gas detected: Ammonia
Cartridge change: ZSEA2/EX
Measurement range: 0÷300 ppm
Calibration cylinder: BO501
Average life in clean air: 2 years
Data Sheet
| Codice Produttore | SE138EA-H |
|---|---|
| Brand | TECNOCONTROL |
