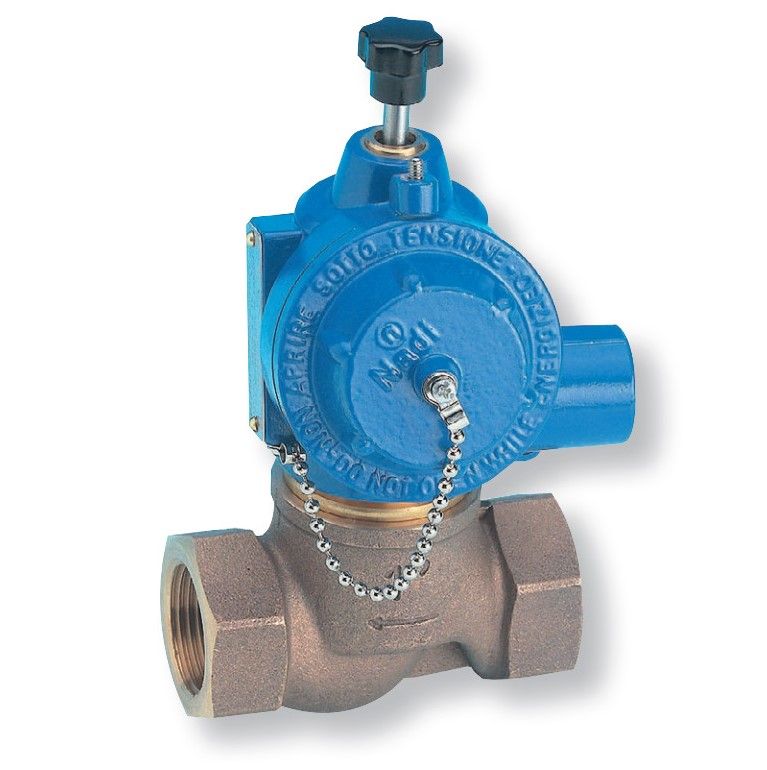

TECNOCONTROL VR865 ATEX NA 1 and 1/2 inch explosion-proof solenoid valve

ATEX NA 1 and 1/2 inch explosion-proof solenoid valve

These special solenoid valves enrich the range described so far, standing out for their explosion-proof execution with ATEX certification, in fact it has been designed to avoid the risk of explosion in classified areas. Deflagration or explosion which could, in the case of any valve, be triggered by the device itself, precisely due to the effect of the electrical impulse that determines its operation.

Flow rate (m3/h): 50

Ø: 1 1/2 inch

Max pressure: 10

IP protection rating: IP 67

Dimensions: 140x41

Power supply: 230 Vac – 24 Vdc – 12 Vdc
