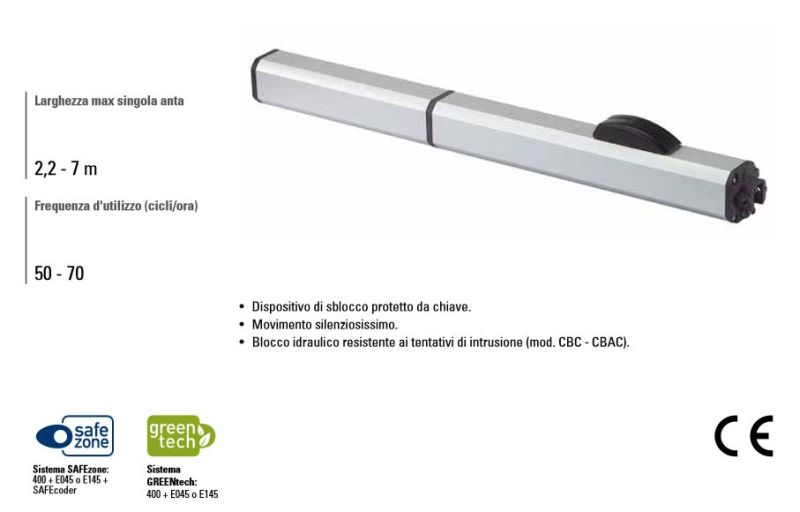

FAAC 104202 ACTUATOR 400 CBAC LN LT 1.5 RELEASE '05

ACTUATOR 400 CBAC LN LT 1.5 RELEASE '05

230V hydraulic actuator Maximum width of a single leaf: 2.2 — 7 m (with electric lock) Frequency of use (cycles/hour): 50 — 70

Key-protected unlocking device. - Very quiet movement. - Hydraulic lock resistant to intrusion attempts (mod. CBC — CBAC).

400 includes: a hydraulic actuator with hydraulic lock when closing (400 CBC), without hydraulic block (400 SB), without hydraulic block for heavy or paneled doors (400 SBS and 400 SBS L), a hydraulic actuator with hydraulic lock when opening/closing (400 CBAC and CBAC L), installation accessories, an unlocking key, an 8µF 400V starting condenser.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 220 W Maximum thrust force: 4650 N (*) Maximum rod speed: 15 mm/s (*) Motor-pump group flow: 1.5 lpm (*) Stem stroke: 390 mm Maximum door opening angle: 125° Ambient operating temperature: -20°C ÷ + 55°C Thermoprotection: 120°C Degree of protection: IP55 Weight: 10 Kg Frequency of use: 50 cycles/hour Maximum leaf width: 2.20 m Oil type: FAAC HP OIL Mounting brackets: Rear connection to solder/screw on — front connection to weld Dimensions (LxDxH): 1277 x 85 x 119 mm Electronic equipment: Not included
