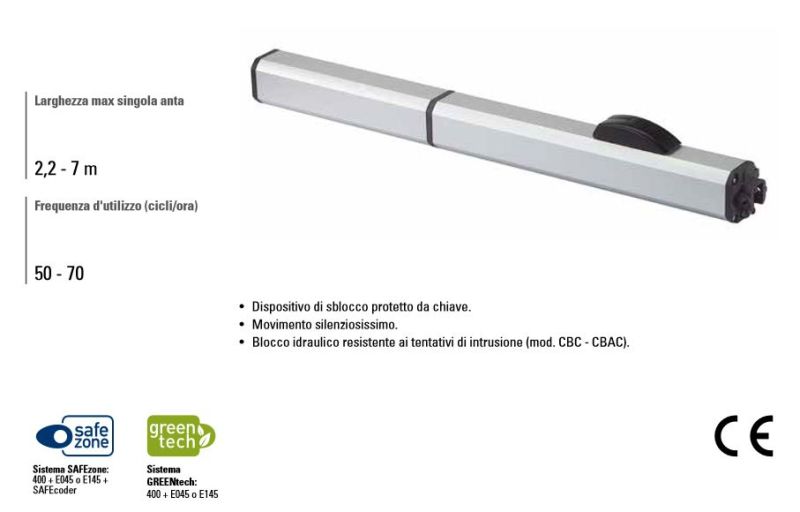

FAAC 104220 ACTUATOR 400 SBS LN 0.75 LT RELEASE '05

ACTUATOR 400 SBS LN 0.75 LT RELEASE '05

230V hydraulic actuator - Maximum width of a single leaf: 2.2 - 7 m (with electric lock) - Frequency of use (cycles/hour): 50 - 70

Key-protected unlocking device. - Very quiet movement. -Hydraulic block resistant to intrusion attempts (mod. CBC — CBAC).

400 includes: a hydraulic actuator with hydraulic lock when closing (400 CBC), without hydraulic block (400 SB), without hydraulic block for heavy or paneled doors (400 SBS and 400 SBS L), a hydraulic actuator with hydraulic lock when opening/closing (400 CBAC and CBAC L), installation accessories, an unlocking key, an 8µF 400V starting condenser.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 220 W Maximum thrust force: 7750 N - Maximum rod speed: 7.5 mm/s - Motor-pump capacity: 0.75 lpm - Stem stroke: 390 mm Maximum opening angle: 125° Ambient operating temperature: -20°C ÷ + 55°C Thermoprotection: 120°C Degree of protection: IP55 Weight: 10 Kg Frequency of use: 40 cycles/hour Maximum door width: 7.00 m (with electric lock) Type of oil : FAAC HP OIL Fixing brackets: Rear connection to solder/screw - front connection to weld Dimensions (LxDxH): 1277 x 85 x 119 mm Electronic equipment: Not included
