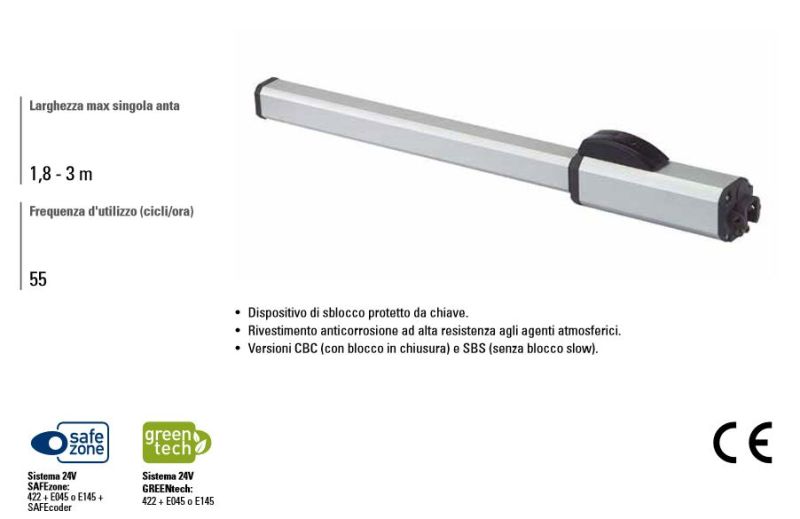

FAAC 104200 422 CBAC LT 1 UNLOCKING '05 ACTUATOR

422 CBAC LT 1 UNLOCKING '05 ACTUATOR

230V hydraulic actuator Maximum width of a single leaf: 1.8 — 3 m (with electric lock) Frequency of use (cycles/hour): 55

Key-protected unlocking device. - Anti-corrosion coating with high resistance to atmospheric agents. - CBC (with lock in closing) and SBS (without slow lock) versions.

422 includes: a hydraulic actuator with opening/closing hydraulic lock (422 CBAC), without lock (422 SBS), installation accessories, an unlocking key, an 8µF 400V starting capacitor.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 220 W Maximum thrust force: 5000 N - Maximum rod speed: 13 mm/s - Motor-pump capacity: 1 lpm - Stem stroke: 250 mm Maximum opening angle: 110° Ambient operating temperature: -20°C ÷ + 55°C Heat protection: 120°C Degree of protection: IP55 Weight: 7 Kg Frequency of use: 55 cycles/hour Maximum leaf width: 1.8 m Oil type: FAAC HP OIL fixing: Rear connection to solder/screw on - front connection to solder/screw Dimensions (LxDxH): 987 x 85 x 119 mm Electronic equipment: Not included
