FAAC 104210 ACTUTORE 422 SBS 0.75 LT S.A. UNLOCK '05

422 SBS 0.75 LT S.A. ACTUTOR UNLOCK '05

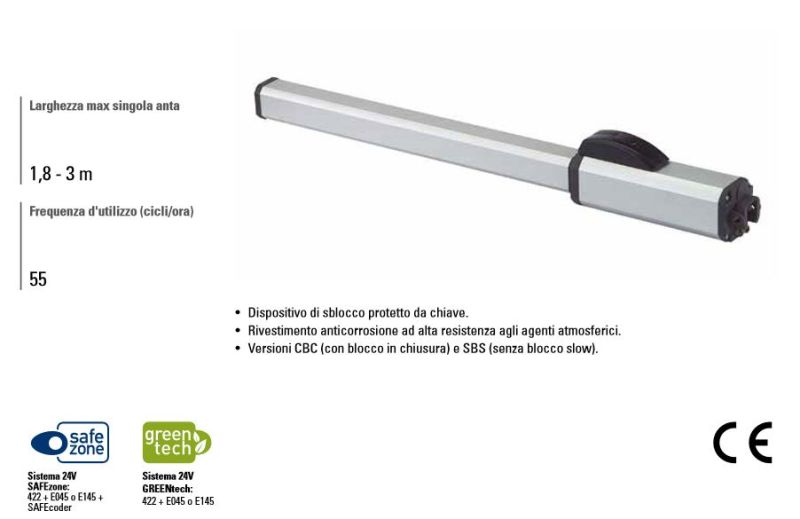

230V hydraulic actuator

Maximum width of a single door: 1.8 - 3 m (with electric lock) - Frequency of use (cycles/hour): 55 - Unlocking device protected by a key. - Anti-corrosion coating with high resistance to atmospheric agents. - CBC versions (with locking in closing) and SBS (without slow lock).

422 includes: a hydraulic actuator with opening/closing hydraulic lock (422 CBAC), without lock (422 SBS), installation accessories, an unlocking key, an 8µF 400V starting capacitor.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 220 W Maximum thrust force: 6900 N - Maximum rod speed: 10 mm/s - Motor-pump capacity: 0.75 lpm - Stem stroke: 250 mm Maximum door opening angle: 110° Ambient operating temperature: -20°C ÷ + 55°C Heat protection: 120°C Degree of protection: IP55 Weight: 7 Kg Frequency of use: 55 cycles/hour Maximum door width: 3 m (with electric lock) Type of oil : FAAC HP OIL Fixing brackets: Rear connection to solder/screw on - front connection to weld/screw Dimensions (LxDxH): 987 x 85 x 119 mm Electronic equipment: Not included
