FAAC 104562 560 SB 1 LT OPERATOR MOTOR ACTUATOR

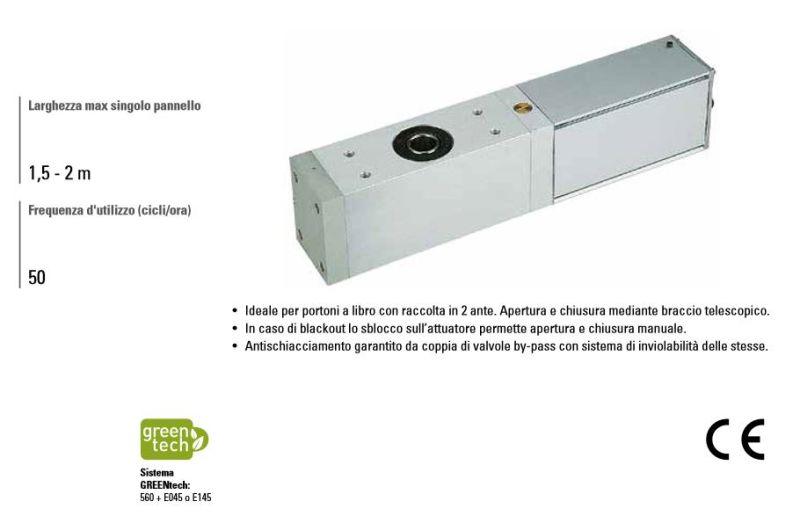

560 SB 1 LT OPERATOR MOTOR ACTUATOR

230V hydraulic actuator

Ideal for folding doors with storage in 2 doors. Opening and closing with a telescopic arm. - In the event of a blackout, unlocking on the actuator allows manual opening and closing. - Anti-crushing guaranteed by a pair of by-pass valves with their inviolability system.

Maximum width of a single panel: 2 m - Frequency of use (cycles/hour): 50 560 includes: a hydraulic actuator without a hydraulic block, an 8µF 400V starting condenser.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 220 W Maximum thrust force: - Max torque: 320 Nm - Max angular speed: 12.4 °/s - Motor-pump group flow: 1 lpm - Ambient operating temperature: -20 °C ÷ +55 °C Thermoprotection: 120°C Degree of protection: IP55 Oil type: FAAC HP OIL weight: 12 Kg Dimensions (LxDxH): 480 x 85 x 110 mm Electronic equipment: Not including max width: 2.00 m (single panel) Frequency of use: 80 cycles/hour
