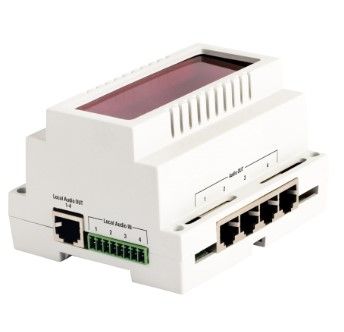

ARITECH FIRE EST-ISLE Audio interface/RS485 for Edwards modular EVAC systems
- MT Code
- ARI_EST-ISLE
- Manufacturer Code
- EST-ISLE
- Brand
- ARITECH FIRE

Audio/RS485 interface for Edwards modular EVAC systems. 4 audio input channels. 4 audio output channels
EST-ISLE is both a communication module that allows integration with external systems through the RS485 protocol, and an audio signal splitter. The address setting occurs in the 0-F range (16 addresses).
Local AUDIO IN - 4 input audio channels on the 8-pin connector. For an easier and faster connection of audio sources, Phoenix-type connectors can be used.
The LOCAL AUDIO IN jack (8-pin Phoenix connector) is connected to LOCAL AUDIO OUT (RJ-45). Output amplifiers - RJ-45 connector for the 4-channel amplifier.
Local AUDIO OUT - RJ-45 connector for system input signals. PSM - RJ-45 connector for connecting to the power management module (PSM
Codice Produttore | EST-ISLE |
---|---|
Brand | ARITECH FIRE |
