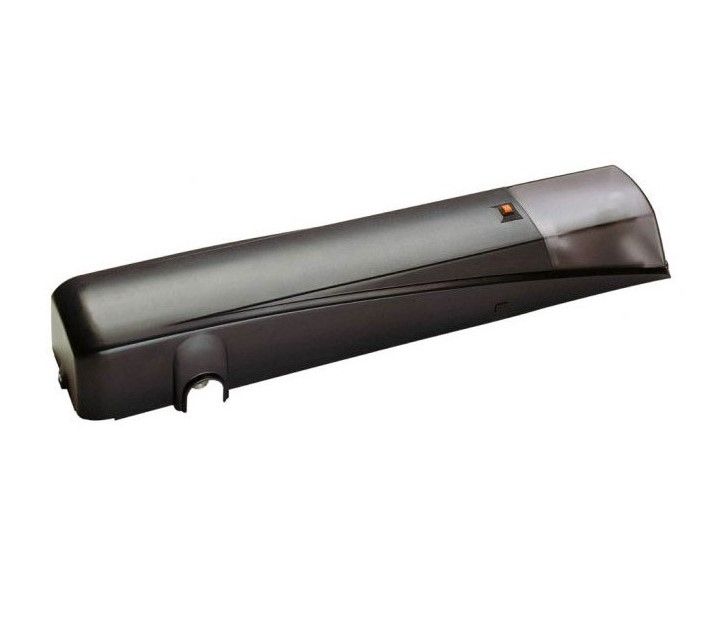

FAAC 110598 Motor Automation Actuator Overhead Doors Counterweights 230v 595 I

Motor Automation Actuator Overhead Doors Counterweights 230v 595 I

Hydraulic actuator for overhead doors with counterweights for residential and collective use. For overhead doors up to 3.5 m wide (5 m with two operators). Powerful and quiet operator. Easy installation thanks to the fixing beam (optional). Anti-crush safety guaranteed by a hydraulic device. Self-locking system with hydraulic locking when opening and closing. In the event of a power failure: unlock from inside the garage and from outside (optional) with a personalized key. Built-in courtesy lighting.

TECHNICAL CHARACTERISTICS: Supply voltage: 230 Vac Power: 220 W Current: 1A Allowable torque: 400 Nm Angular speed: 9°15'/s Maximum door weight: 15 Kg/sqm Frequency of use: 50 cycles/hour Weight: 11 Kg Degree of protection: IP 31 Remark: With 596 BPR plate
