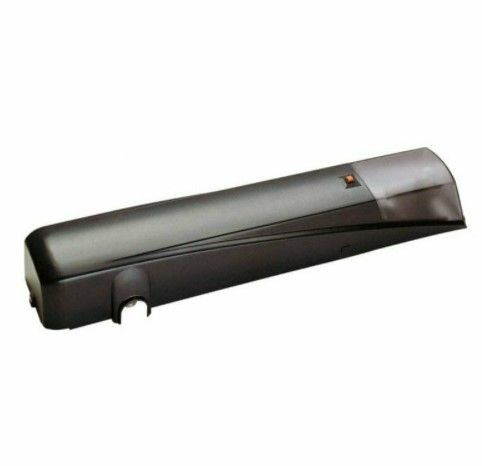

FAAC 110599 595 SLAVE Overhead Door Actuator Automation

595 SLAVE Overhead Door Actuator Automation

Hydraulic actuator for overhead doors with counterweights for residential and collective use. For overhead doors up to 3.5 m wide (5 m with two operators). Powerful and quiet operator. Easy installation thanks to the fixing beam (optional). Anti-crush safety guaranteed by a hydraulic device. Self-locking system with hydraulic locking when opening and closing. In the event of a power failure: unlock from inside the garage and from outside (optional) with a personalized key. Built-in courtesy lighting.

TECHNICAL CHARACTERISTICS: Supply voltage: 230 Vac Power: 220 W Current: 1A Allowable torque: 400 Nm Angular speed: 9°15'/s Maximum door weight: 15 Kg/sqm Frequency of use: 50 cycles/hour Weight: 11 Kg Degree of protection: IP 31 Remark: Without plate (slave)
