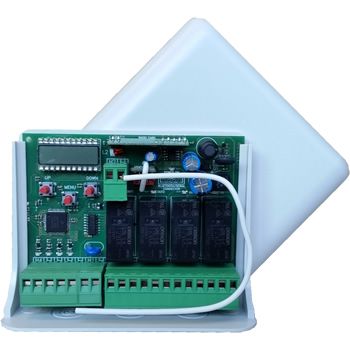

ALLMATIC 12005756 B.RO X40 DISPLAY WITH IB1 4-channel Rolling Code Receiver

B.RO X40 DISPLAY WITH IB1 4-channel Rolling

Code Receiver. Removable memory from 1000 transmitters. 16A 230 Vac relay with selection impulsive, step-by-step, timed operation or delayed. A single wired input for each channel. 3 types of learning: automatic, with LEDs and personalized. Receiver with transmitter management through display and manage enable/disable a single channel, button or transmitter. 12/24 Vdc/Vac ROLLING CODE

receiver power supply with: 433Mhz Rolling Code

• radio receiver compatible with all Rolling Code Allmatic radio controls.


• Up to 1000 transmitters with dedicated memory.
• Easy and intuitive operation thanks to the display interface and 3 keys.
• 4 relay outputs (16A at 230 Vac) with normally open and closed contact.
• 4 wired inputs, one for each relay.

Customizable and differentiated relay operation for each transmitter button/ wired input:

- immediate; — step by step; — timed; — timed

• Password protection and menu management.
• 3 types of learning for transmitter keys:

— Customizable default; — Sequential; — Advanced

• Management of the display transmitter:

— insertion into memory in the chosen position; — deactivation/activation of a transmitter; — modification of the functionality of each button; — cancellation of
