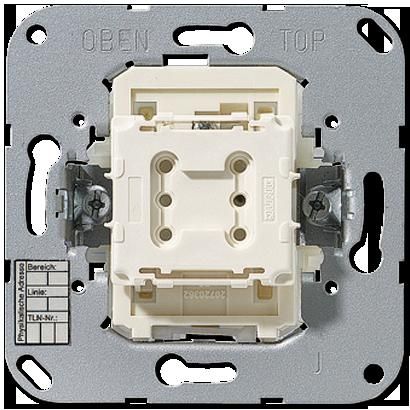

JUNG 4071.02LED BA button - with central neutral position - 1 module

General OFF/ON control of KNX lighting and one ON/OFF lighting; Controlling the ON/OFF function of 2 lights; Controlling the ON and OFF function of 1 light; Controlling the ON/OFF/CLIMITER function of 2 lights; Control of 1 roller shutter; JUNG BP/BCU mechanisms are equipped with the finishing escutcheons of the AS, A, CD, SL and LS series (SL series button position only). Depending on the BP/BCU model (1 way or 2 ways) it is possible to use single or double button covers with or without indicator light. Two white LEDs are intended to become orientation or status information depending on the parameters selected. The "middle position" version can execute a command by pressing the up and down button, while the "button position" version can execute a command only by pressing the down button. BPs/BCUs work via an application, i.e. they consist of a mechanism (hardware) and a program (software). With the help of the application program, functions can be parameterized and group addresses can be linked (see JUNG database).
