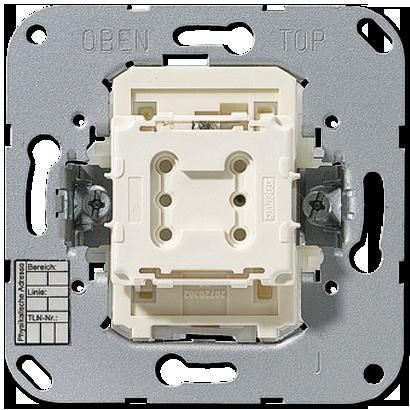

JUNG 4071.01LED BA button - without central neutral position - 1 module

Depending on the version of the device, 1 or 2 modules, rocker switches or two-circuit rockers are used. In the "Neutral position" version of the device, the rocker switch can be operated from both sides (up or down). In the ETS the control concept can therefore be configured to the rocker function (the same KNX function on both control elements) or alternatively to the push button function (the same or different KNX functions on the control elements). In the "neutral position" version the overhead doors are in a vertical position when they are not pressed. In the "Switch Position" version, the rocker switch can only be operated from one side (e.g. bottom), so that only the button functions can be performed. In this case the rocker switch slides when not pressed. In the ETS, the KNX functions "Switching", "Dimming" and "Venetian blind" can be configured for rocker switch control concepts. The KNX functions "Switching", "Dimming", "Venetian blind", "1-byte value transmitter" and "Scene extension" can be configured in the button control concepts. Two single-color LEDs can be used for orientation lighting or for push-button - press display. In the "neutral position" version of the device, the LED can also be used as a status indicator with the "rocker switch" operating concept. In this case the LEDs have their own 1-bit communication objects for activation.
