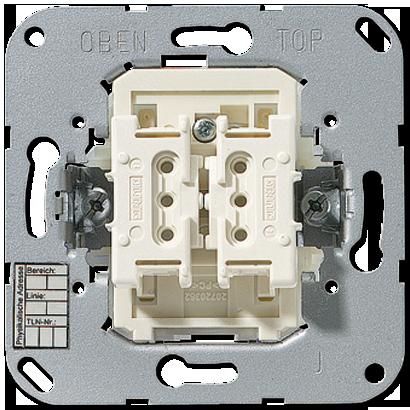

JUNG 4072.01LED BA button - without central neutral position - 2 outputs

The KNX bus coupler pushbutton (BCU pushbutton) combines the functions of a simple pushbutton sensor in a single device. Rocker switches from different switching programs can be connected to the button of the bus coupler, into which KNX operating functions can be integrated conventionally into electrical systems. The bus coupler button must be configured with the ETS and put into operation. In the "neutral position" version of the appliance, the rocker switch can be operated both sides (top or bottom). In the ETS the operating concept can then be configured as tilting function (the same KNX function on both control elements) or alternatively push-button function (the same or different KNX functions on the control elements). In the "neutral position" version the rocker switches are in the vertical position when not pressed. In the "switch position" version the rocker switch can only be operated from one side (e.g below) so that only the button functions can be performed. In this case, the rocker switch is tilted when not pressed. In the ETS it is possible to configure the KNX functions "Switching", "Dimming" and "Venetian blind" for rocker switch operation concepts. In button control concepts, KNX works "Switching", "Dimming", "Venetian blind", "1-byte value transmitter" and "Scene extension" are configurable. Two single-color LEDs can be used for orientation lighting or for displaying button presses. In the In the "neutral position" version of the device, the LED can also be used as a status indicator with the "rocker "switch" operating concept. In this case the LEDs have their own 1-bit communication objects for activation. In the 1-channel pushbutton bus coupler, both LEDs always perform the same display function. In In the 2-module luminaire the LEDs can perform different functions independent of each other.
