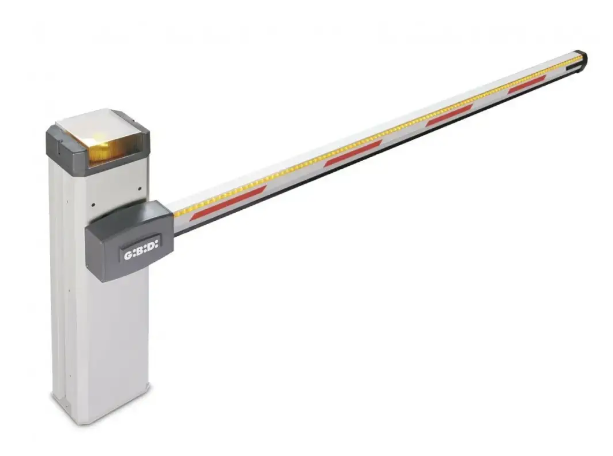

GIBIDI 11524VD-S.2C BARR 546 V 24v Electromechanical Barrier

MT Code: GBD_11524VD-S.2C
Manufacturer Code: 11524VD-S.2C
Brand: GIBIDI

Description

24 Vdc with BR 24 equipment, fast version

24Vdc electromechanical

barriers suitable for gaps of up to 6 meters and for intensive use

EASY TO INSTALL

Thanks to the adjustable anchoring system and the control unit in a raised position

QUIET AND FAST Fast

gear motor for openings in 1.8 sec. and up to 5 sec. Made exclusively with high quality materials.

TECHNOLOGICAL AND SAFE

Master/Slave management, integrated traffic light system, programmable security connection and many special functions. Transmission wheel in molded and heat treated steel. Integrated and adjustable anti-crush detection for greater safety as required by EN 12453.

A COMPLETE AND RELIABLE RANGE

Suitable for steps up to 6 meters, with many finishing accessories. Made from only high quality materials Balancing system with compression springs made of special long-lasting steel

Use: INTENSIVE

Frequency of use: 60% H24

Motor power supply: 24 Vdc

Absorbed power: 200W Degree of protection:

IP55 (IP67 operator)

Shaft length: Max. 3.00 m Opening time:

1.8 s Force adjustment: YES Slow down:

YES

Operating temperature: -20°C +60°C Balance

type

: ENCODER/FENECORSA

COMPRESSION SPRING A/C Operator weight:
