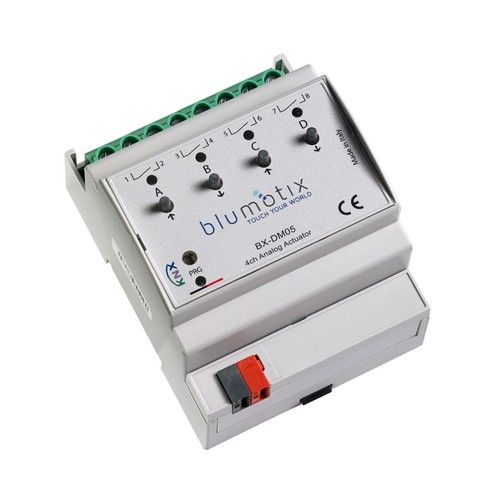

BLUMOTIX BX-DM05 4-channel multifunction analog KNX actuator

BLUMOTIX BX-DM05 Product Description

The BLUMOTIX BX-DM05 is a KNX actuator designed to offer high performance and switching speed, making it ideal for applications that require precise and rapid control of electrical loads.

Technical characteristics

The BX-DM05 actuator is a bus-powered device, capable of managing electrical loads with outputs up to 16A, as indicated in other models of the Blumotix series [3).

Main Features

• Switching electrical loads with high switching speed, ensuring optimal efficiency.
• Programmable with ETS (Engineering Tool Software) to perform a variety of tasks, including opening and closing electrical circuits.
• Ability to monitor electrical loads, providing accurate and real-time management of energy resources.

Electrical Specifications

• Input voltage: 100... 240 V AC.
• Frequency: 50/60 Hz.
• Output voltage: 12 V DC (if applicable, as in the BX-PW15 model) [2).
• Maximum output current: depends on the specific model, but generally up to 1.25 A for power applications.
• Maximum power: varies depending on the configuration, such as 15 W for the BX-PW15 model [2).

Protections and Operating Environments

• Insulation: Class II.
• Operating temperature: -5... +45 °C.
• Humidity: 10%/90%.
• Degree of protection: IP30.

Connectors and Connections

• KNX connector: d=0.8mm.
• Electrical connections: screw terminals, cables with a maximum cross section of 2.5 mm2.
