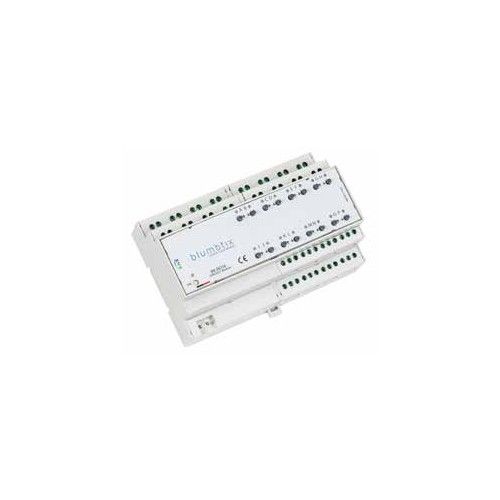

BLUMOTIX BX-RO16 KNX M-DIN 8/16 OUT multifunction actuator (16A)

BLUMOTIX BX-RO16 Product Description

The BLUMOTIX BX-RO16 is a 16-channel multifunction actuator designed for DIN rail mounting, ideal for independent switching of loads using relay contacts.

Key Features

• 16 channels with 16 A bistable relays, connected directly to the terminals without phase sharing.
• The screw terminals can accommodate cables with a cross-section of up to 2.5 mm².
• The contacts used support an inrush current of up to 320 A in the first 2 ms, making them particularly suitable for driving inductive loads typical of fluorescent or neon lamps.

Functionality

• Output switching is also managed through the buttons on the front panel.
• A green LED indicates channel status.
• Switching functions, status notification, lock command, forcing, timing, delays and scenarios.
• Management of roller shutters and venetian blinds.
• Valve control with PWM algorithm.
• Control of fancoil devices with 2 or 4 tubes, from 1 to 3 speeds depending on the configuration.

Logical and General Functions

• Logical function set consisting of 16 input communication objects for each channel, combinable with OR, AND, XOR and GATE logical operations.
• These functions make it possible to optimize the use of all exits and to implement operations necessary to manage a residential or tertiary building with a single device.

Parameterization and Integration

The BX-RO16 can be parameterized by the ETS software, facilitating integration and configuration within KNX projects.

Technical Specifications

• KNX bus connection: removable 2-pin terminal d=0.8 mm.
• Electrical connections: screw terminal, max cable cross section 2.5 mm² (AWG12).
• Degree of protection: IP20.
• Dimensions: 8 DIN modules.
• Nominal relay contact voltage: 230 V ac, 50/60 Hz.
• Nominal current of the relay contact: 16 A.
• Power supply: via KNX bus, 29 V dc SELV.
• Current absorbed by the bus: max 17 mA.
• Operating temperature: -5 ÷ +45 °C (indoor use).
